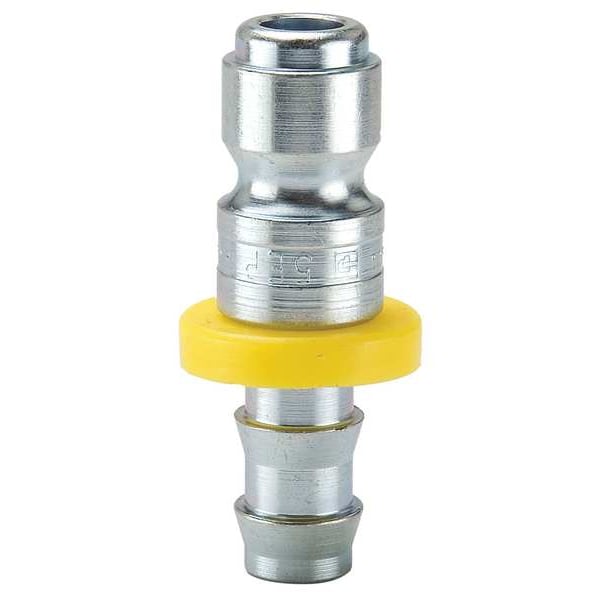

Parker Coupler Plug, Steel, Push On, 25 cfm 9CP - main

Coupler Plug, Steel, Push On, 25 cfm

  • Mfr # 9CP

  • Zoro # G4874852

product price:  $10.89
/ea

Key Features

Interchange Type
Tru-Flate-Automotive
Material
Steel
Coupling Component
Plug
Hose Fitting Gender
Male
Connection Type
Hose Barb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9CP
Zoro #
G4874852
UPC #
-
Country of Origin
United States

Dimensions

Hose Fitting Size
3/8 in
Coupling Size
1/4 in
Barb Size
3/8 in
Overall Length
2 in
Body Size - Quick Connect Air Couplings
1/4 in
Max. Outside Dia.
7/8 in

Details

Item
Quick Connect Hose Coupling
Interchange Type
Tru-Flate-Automotive
Material
Steel
Coupling Component
Plug
Hose Fitting Gender
Male
Connection Type
Hose Barb
Finish/Coating
Trivalent Chrome
Max. Flow Rate
707.92 lpm
Coupling Locking Type
Sleeve
Includes Valve
No
Color
Silver
Temp. Range
-40 Degrees to 250 Degrees F
Application
Pneumatic
For Hose I.D.
3/8 in
Barbed
Yes
Max. Working Pressure @ 70 F
300 psi

Description

The PARKER - 9CP quick connect hose coupling is a push/pull sleeve locking fitting for hose connection and disconnection without a separate tool. This male plug fitting is specified for 3/8 in hose inner diameter (hose I.D.) and is intended to be compatible with pneumatic hose fittings. It features a barbed hose barb connection for connection to 3/8 in hose using the specified hose barb. The coupling is constructed from steel for pneumatic hose and air line applications within the stated specifications.

Key Features:

  • Application: Pneumatic use
  • Connection Type: Hose barb with male fitting
  • Coupling Component: Plug
  • Coupling Locking Type: Sleeve
  • Body and Coupling Size: 1/4 in
  • Barb Size and Hose Fitting Size: 3/8 in
  • Hose I.D. Compatibility: 3/8 in
  • Overall Length: 2 in
  • Maximum Outside Diameter: 7/8 in
  • Material: Steel
  • Interchange Type: Tru-Flate-Automotive
  • Includes Valve: No
