Shop PARKER

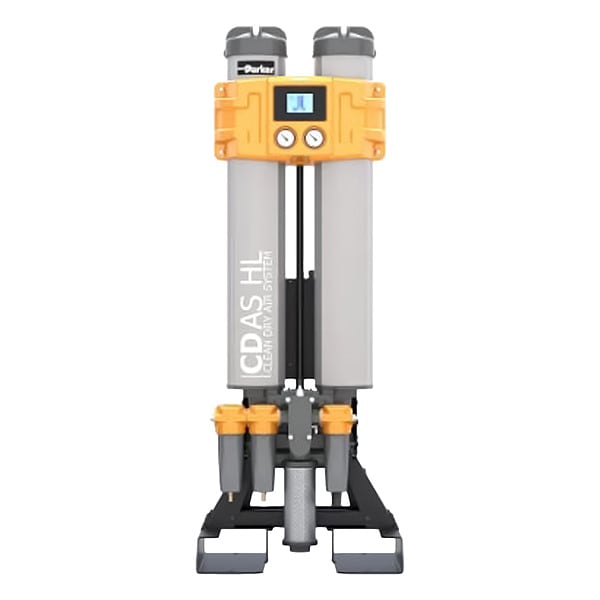

Desiccant Dryer

  • Mfr # CDASHL075-40N16AE

  • Zoro # G911618513

product price:
$
12,968.99
/ea
Additional $235.00 delivery surcharge applies per item.
See details

Key Features

ISO Class
2
Overall Height
63 in
Overall Width
22 in
Overall Depth
27 in
Dew Point
-40 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CDASHL075-40N16AE
Zoro #
G911618513
UPC #
-
Country of Origin
United Kingdom
Item
Desiccant Dryer
ISO Class
2
Dew Point
-40 Degrees F
Desiccant Material
Activated Alumina, Silica Gel, Molecular Sieve
Features
4 Stages of Purification, Corrosion Protected, Energy Saving Dewpoint Dependent Switching Included as Standard, Full Bore Internal Flow Paths
Maximum Operating Pressure
232 psig
Weight
364 lb
Maximum Flow Rate
120 cfm
Purge Rate
617 lpm
Phase
Single
Air Inlet Type
NPT
Standards
PED 2014/68/EU Fluid Group II
Frequency
50 Hz, 60 Hz
Filter Type
Coalescing, Particulate
Minimum Operating Temperature
41 Degrees F
Maximum Ambient Temperature
131 Degrees F
Filter Included
Pre-Filter & After Filter
Stage 2 Filter Type
0.01 Micron Pre Filter
Stage 4 Filter Type
1 Micron After Filter
Electrical Connection Type
Hardwired
Maximum Operating Temperature
122 Degrees F
Stage 1 Filter Type
1 Micron Pre Filter
Pressure Drop
5 psi
Series
CDAS
Minimum Operating Pressure
58 psig
Voltage
85 to 265V
Filtered Substance
Oil & Water Aerosols
Full Load Current
2 A
Stage 3 Filter Type
Desiccant Dryer
Includes
General Purpose Filter, High Efficiency Coalescing Filter

Description

Desiccant Dryer, Maximum Flow Rate 120 cfm, Voltage 85 to 265V, Phase Single, Maximum Operating Pressure 232 psig, Maximum Operating Temperature 122 Degrees F, Air Inlet Size 1 in, Air Inlet Type NPT, Full Load Current 2 A, ISO Class 2, Dew Point -40 Degrees F, Pressure Drop 5 psi, Air Inlet Gender Not Applicable, Air Outlet Gender Not Applicable, Air Outlet Size Not Applicable, Air Outlet Type Not Applicable, Body Material Not Applicable, Bowl Capacity Not Applicable
