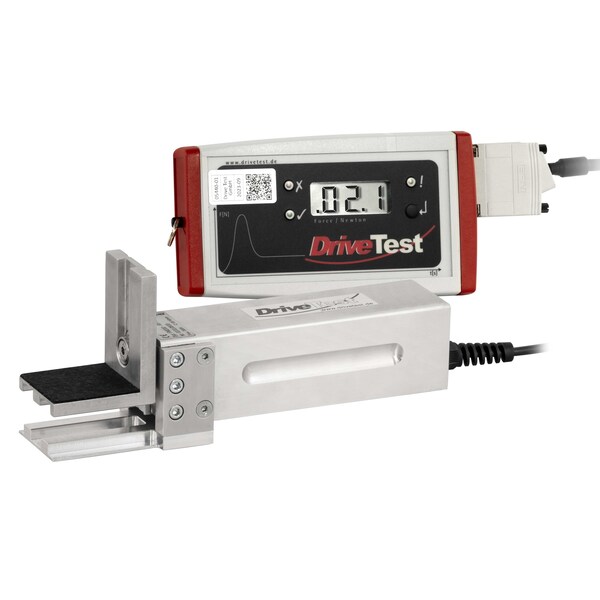

Closing Force Measuring Device
Mfr # FM200-SU-SY-10-200
Zoro # G916552898
product price: $4,649.99
/ea
Free Shipping & Returns
Key Features
Accuracy
±3 N or 3% of Reading
Includes
1 x ISO calibration certificate
Range
Up To 300 N
Dimensions
240 x 85 x 60 mm / 9.4 x 3.3 x 2.3 in
Area
50 x 50 mm / 1.9 x 1.9 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
FM200-SU-SY-10-200
Zoro #
G916552898
UPC #
-
Country of Origin
Germany
Dimensions
Dimensions
240 x 85 x 60 mm / 9.4 x 3.3 x 2.3 in
Length
3.3 in
Width
9.4 in
Gap Width
4 mm / 0.15 in
Details
Accuracy
±3 N or 3% of Reading
Includes
1 x ISO calibration certificate
Range
Up To 300 N
Area
50 x 50 mm / 1.9 x 1.9 in
Measuring Principle
DMS Transducer
Application
For measuring closing force for power-operated windows, sunroofs, and tailgates in the automotive sector.
For Use With
For measuring closing force for power-operated windows, sunroofs, and tailgates in the automotive sector.
Stiffness
20 N/mm
Description
The force transducer is an electronic closing force measuring device for power-operated windows, sunroofs and tailgates in the motor vehicle sector. Typical areas of application are testing and production in the automotive industry. It is also increasingly being used by technical monitoring institutions. Its uncompromising design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.When it comes to measuring setups in testing and production, quick and easy execution is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement process and the effort required for documentation. With just a few operating steps, the measurements can be loaded into a PC, evaluated, exported and documented. We provide suitable interfaces e.g. Microsoft DLL or National Instruments LabVIEW for integration into an automated test procedure.
