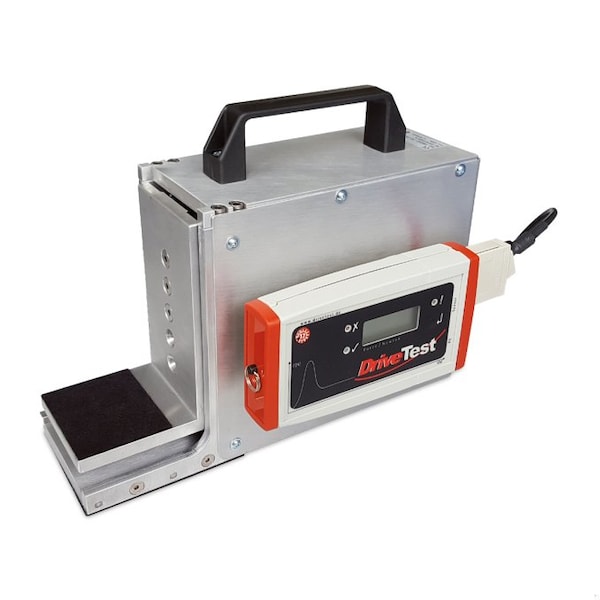

Closing Force Measuring Device
Mfr # FM202-UN-SY-10-600
Zoro # G516552922
product price:Â
$
7,238.99
/ea
Free Shipping & Returns
Key Features
Accuracy
±3 N (0 - 100 N) / ±3% (>100 N)
Includes
SEB2 display device with LCD, LED indicators, membrane key, and serial interface; 9V battery; transport case with foam insert; USB PC connection cable; USB stick with PinchPilot software and documentation; user manual; and ISO calibration certificate
Range
0 - 600 N
Application of Force
On One Side
Dimensions
100 x 300 x 190 mm / 3.9 x 11.8 x 7.4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- FM202-UN-SY-10-600
- Zoro #
- G516552922
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Dimensions
- 100 x 300 x 190 mm / 3.9 x 11.8 x 7.4 in
- Gap Width
- 40 mm / 1.5 in (Minimum)
- Width
- 3.9 in
- Length
- 11.8 in
Details
- Accuracy
- ±3 N (0 - 100 N) / ±3% (>100 N)
- Includes
- SEB2 display device with LCD, LED indicators, membrane key, and serial interface; 9V battery; transport case with foam insert; USB PC connection cable; USB stick with PinchPilot software and documentation; user manual; and ISO calibration certificate
- Range
- 0 - 600 N
- Application of Force
- On One Side
- Measuring Principle
- DMS Bridge
- For Use With
- For measuring closing force for power-operated windows, sliding roofs and doors in the automotive sector and for sliding steps in the rail vehicle sector.
- Application
- For measuring closing force for power-operated windows, sliding roofs and doors in the automotive sector and for sliding steps in the rail vehicle sector.
- Area
- 80 x 80 mm / 3.1 x 3.1 in
- Spring Rate
- 10 N/mm
Description
The closing force measuring device is an electronic measuring device for power-operated windows, sliding roofs and doors in the automotive sector and for sliding steps in the rail vehicle sector. It allows measurements up to 600 N with a spring stiffness of 10 N/mm. Its uncompromising design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.For measurement set-ups in testing and production, quick and easy execution is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be loaded into a PC, evaluated, exported and documented. We provide suitable interfaces e.g. Microsoft DLL or National Instruments LabVIEW for integration into an automated test sequence.
