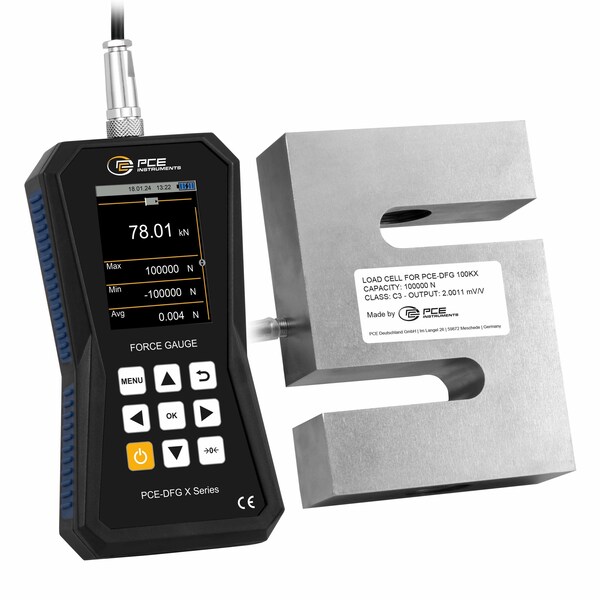

Force gauge for tension and compression, measures 100,000 N / 22,480 lbf with high resolution
Mfr # PCE-DFG 100K X
Zoro # G622432323
product price:Â $2,057.99
/ea
Free Shipping & Returns
Key Features
Application
To measure both tensile and compressive forces
Length
6.5 in
Memory Interval Of
1 Hz
Measuring Units
kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm
Width
3.35 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-DFG 100K X
- Zoro #
- G622432323
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Length
- 6.5 in
- Width
- 3.35 in
- Display Size
- 2.8 in
Details
- Application
- To measure both tensile and compressive forces
- Memory Interval Of
- 1 Hz
- Measuring Units
- kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm
- Resolution
- 10 N
- Measuring Range
- 0 to 100 kN
- Operating Time
- 13 Hrs
- Memory Medium
- Internal memory
- Includes
- 1 x Load cell PCE-DFG 100K X load cell, 1 x Suitcase, 1 x USB-C cable, 1 x PC software, 1 x User manual
- Alarm
- Optical, acoustic
- Automatic Switch-Off Adjustable
- 1 to 15 min.
- Display
- LCD with illumination
- Automatic Switch-Off Can Be Deactivated
- Yes
- Accuracy
- ± 0.05 % F.S
- Adjustable Measurement Rate
- 1 to 7200 Hz
- For Use With
- To measure both tensile and compressive forces
- Memory Interval Up To
- 7200 Hz
- Storage Capacity
- 32 GB
Description
The Force Gauge / Digital Force Gauge can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The Force Gauge / Digital Force Gauge is supplied with an external measuring cell and can measure forces of up to 100 kN / 100,000 N / 22,480.9 lbf. Various eyelets or hooks with an M33 thread can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads. The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The Force Gauge / Digital Force Gauge has a USB-C interface that can be used to read the measurement data into the PC software. The Force Gauge / Digital Force Gauge is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. The measuring cell is protected to IP67 and can therefore also be used in harsh industrial environments. Various force test stands are available for adapting the Force Gauge / Digital Force Gauge. A special feature of the Force Gauge / Digital Force Gauge is the possibility to exchange the measuring cell between the models. By entering the sensitivity in mV/V, all measuring cells can be used with just one handheld device.
