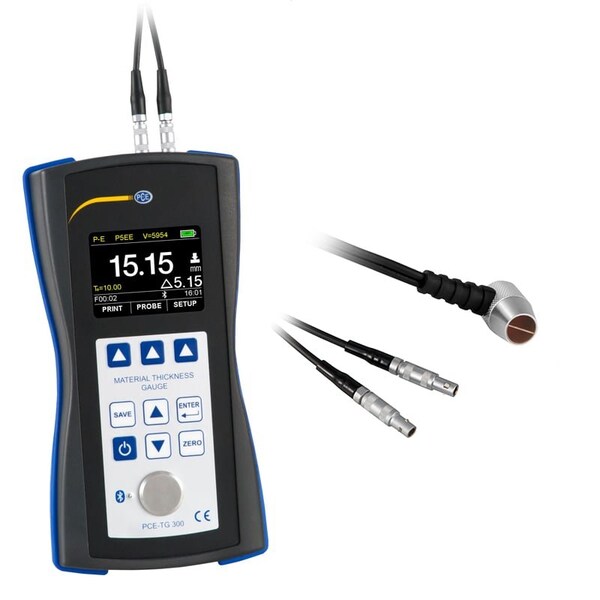

Material thickness meter, 1-600 mm with 5 MHz probe (to 122 deg F) and Bluetooth/USB
Mfr # PCE-TG 300-NO5
Zoro # G122432335
product price: $1,659.99
/ea
Free Shipping & Returns
Key Features
View Mode
Normal Mode; Scan Mode; Difference Mode
Units
mm / inch
Length (In.)
7.3 in
Measuring Range (P-E, Pulse-Echo)
0.65 to 600 mm / 0.025 to 23.62" (steel)
Sensor Description
normal measurement
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-TG 300-NO5
- Zoro #
- G122432335
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Length (In.)
- 7.3 in
- Width (In.)
- 3.8 in
- Sensor Minimum Diameter Of Pipes
- 20 x 3 mm / 0.787 x 0.118"
- Sensor Diameter
- 10 mm / 0.39 in
Details
- View Mode
- Normal Mode; Scan Mode; Difference Mode
- Units
- mm / inch
- Measuring Range (P-E, Pulse-Echo)
- 0.65 to 600 mm / 0.025 to 23.62" (steel)
- Sensor Description
- normal measurement
- Resolution (mm)
- 0.1 mm / 0.01 mm / 0.001 mm (adjustable)
- Working Modes
- Pulse-echo mode (fault and void detection), Echo-echo mode (hide layer thicknesses, e.g., paint)
- Sensor Frequency
- 5 MHz
- Features
- Large measuring range, Various sensors available, Battery operation, Error and voids detection, Internal measurement data memory, Print via Bluetooth
- Sensor Model
- PCE-TG-NO5
- Includes
- 1 x Sensor PCE-TG-NO5, 1 x 100 ml coupling gel, 1 x Transport case, 4 x AA batteries, 1 x User manual
- Application
- To measure the wall thicknesses of all homogeneous materials
- Accuracy
- ±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm) ; H refers to the material thickness of the workpiece
- Sensor Measuring Range
- 1 to 600 mm / 0.039 to 23.62" (steel)
- Measuring Range (E-E, Echo-Echo)
- 2.50 to 100 mm / 0.098 to 2.36"
- Calibration
- sound velocity calibration, zero calibration, two-point calibration
- Measurable Materials
- Metals, Plastics, Ceramics, Epoxy Resin, Glass and All Homogeneous Materials
- For Use With
- To measure the wall thicknesses of all homogeneous materials
Description
This Ultrasonic testing device with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the thickness meter. For damping or scattering materials such as plastic or cast a special sensor is available. An angled 90 deg sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the thickness meter and thus adapted to a wide variety of materials. The measured values are displayed directly on the easy-to-read TFT color display. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products. Thanks to the Echo-Echo working mode, even coated workpieces can be measured.
