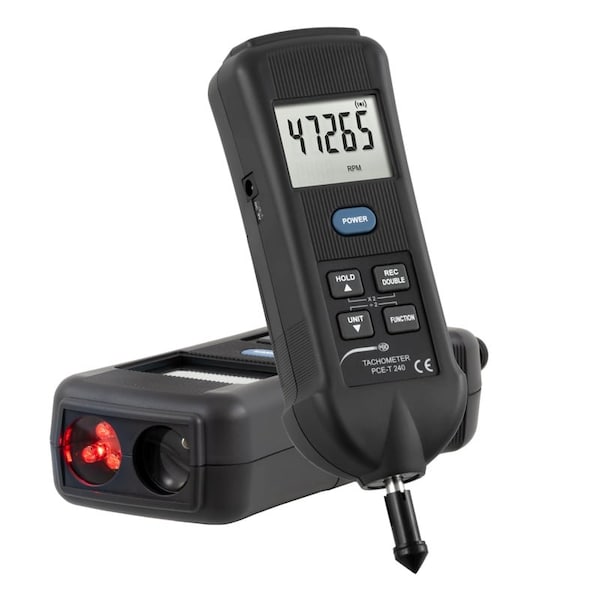

Tachometer-stroboscope, measures 5-99,999 RPM (optical/contact) with LED strobe and Type-K input
Mfr # PCE-T 240
Zoro # G922432283
product price:Â $398.99
/ea
Free Shipping & Returns
Key Features
Optical Detection Distance
50-150 mm, 2 to 6 inch (typical), maximum 300 mm, 12 inch (depending on ambient lighting)
Strobe Resolution
0.1 RPM (<1,000 PRM), 1 RPM (1,000 … 30,000 RPM), 5 RPM (30,000 … 50,000 RPM), 10 RPM (50,000 … 99,990 RPM)
Strobe Accuracy
±(0.1% of reading + 2 digits)
Length (In.)
8.1 in
Temperature (Type K) Resolution
0.1°C / 0.18°F
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-T 240
Zoro #
G922432283
UPC #
-
Country of Origin
Taiwan, Province of China
Dimensions
Length (In.)
8.1 in
Width (In.)
2.6 in
Details
Optical Detection Distance
50-150 mm, 2 to 6 inch (typical), maximum 300 mm, 12 inch (depending on ambient lighting)
Strobe Resolution
0.1 RPM (<1,000 PRM), 1 RPM (1,000 … 30,000 RPM), 5 RPM (30,000 … 50,000 RPM), 10 RPM (50,000 … 99,990 RPM)
Strobe Accuracy
±(0.1% of reading + 2 digits)
Temperature (Type K) Resolution
0.1°C / 0.18°F
Strobe Led
Three red LEDs
Temperature (Type K) Measuring Range
-50.0-1300.0°C / -58.0-2372.0°F,E2516-100.0 to -50.1°C / -148.0 to -58.1°F
Strobe Measuring Range
100 to 99,990 RPM/FPM
Contact Measurement Measuring Range
0.5 to 19,999 RPM, 0.05 to 1,999.9 m/min, 0.2 to 6,561.4 ft/min, 2.0 to 78736.2 in/min
Application
Used to determine the speed of conveyor belts and to determine the rotational speed of ventilation systems
For Use With
Used to determine the speed of conveyor belts and to determine the rotational speed of ventilation systems
Contact Measurement Accuracy
±(0.05% of reading + 1 digit)
Temperature (Type K) Accuracy
±(0.4% of reading +0.5°C) / ±(0.4% of reading 0.9°F), ±(0.4 % of reading +1°C) / ±(0.4% of reading +1.8°F)
Optical Speed Resolution
0.5 RPM (< 1,000 RPM), 1 RPM (≥1,000 RPM)
Temperature (Pt1000) Measuring Range
10.0 to 70.0°C / 14.0 to 158.0°F
Optical Speed Accuracy
±(0.05% of reading + 1 digit)
Optical Speed Measurement Range
5 to 99,999 RPM
Description
The tachometer features contact-based speed measurement. The measuring range of the contact-based speed measurement on the tachometer is 0.5 to 99,999 RPM. Two rubberized measuring tips, one with an inner and one with an outer cone, are included in the scope of delivery to transmit the speed to the tachometer. When using contact-based measurement on the tachometer, the speed can also be determined in m/min, for example, using the measuring wheel. In addition to contact measurement, the tachometer can also measure the speed optically. For this purpose, a 1 x 1 cm piece of reflective tape is affixed to the test object. The tachometer can determine the speed through reflection. Additionally, the speed of the tachometer can be determined using the strobe function. With this function, the tachometer emits multiple flashes in succession. To quickly adjust the flash frequency of the tachometer, the flash frequency can be doubled or halved. The speed is determined using the strobe function of the tachometer as soon as the test object can be seen continuously and stationary through the flash.In addition to measuring speed and rotational speed, the tachometer can also measure temperature. Any type-K thermocouple can be connected for this purpose. A PT1000 resistance temperature sensor can also be connected if required. Thanks to its numerous functions, the tachometer can be used in a wide range of applications. For example, the tachometer is used to determine the speed of conveyor belts and the rotational speed of ventilation systems. The tachometer can optionally be equipped with an ISO calibration certificate.
