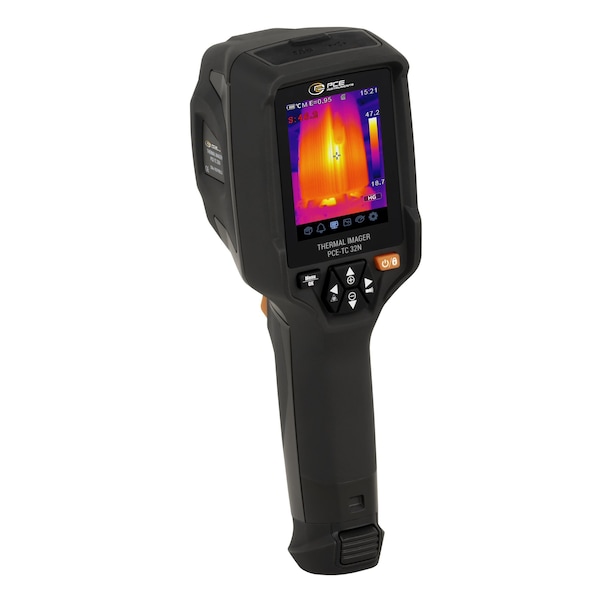

Thermal imager, 256x192 px, -4 to 1022 deg F with 60 mK sensitivity, 25 Hz and Wi-Fi/USB-C
Mfr # PCE-TC 32N
Zoro # G322432418
product price:Â $1,454.99
/ea
Free Shipping & Returns
Key Features
Sensor Characteristics Pixel Density (Ifod)
7.6 mrad
Sensor Characteristics Infrared Resolution
256 x 192 pixels
Sensor Characteristics Image Sensor
uncooled microbolometer
Measurement Correction
Reflection Temperature, Emission Value Adjustment
Field of View
50° x 37°
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-TC 32N
Zoro #
G322432418
UPC #
-
Country of Origin
China
Dimensions
Width
3.0 in
Length
8.8 in
Sensor Characteristics Depth Of Field Of View
from 0.5 m
Details
Sensor Characteristics Pixel Density (Ifod)
7.6 mrad
Sensor Characteristics Infrared Resolution
256 x 192 pixels
Sensor Characteristics Image Sensor
uncooled microbolometer
Measurement Correction
Reflection Temperature, Emission Value Adjustment
Field of View
50° x 37°
Sensor Characteristics Frame Rate
25 Hz
Measuring Function Accuracy
±2°C / 3.6°F at 10 to 35°C ambient and object >0°C
Measuring Function Measuring Range
-20 to 550°C / -4 to +1022°F
Measuring Points
Average Point, Automatic Recognition Of The Hottest and Coldest Point
Application
Covers a wide temperature range of measuring tasks
Sensor Characteristics Spectral Range
7.5-14 µm
Includes
1 x USB-C cable, 1 x Rechargeable battery, 1 x Software CD, 1 x 32 GB micro SD memory card incl. adapter, 1 x Instruction manual
Image Sensor Field Of View (Fov)
65°
For Use With
Covers a wide temperature range of measuring tasks
Image Sensor
2 megapixels
Measuring Function Resolution
0.1°C / 0.1°F
Sensor Characteristics Thermal Sensitivity
<0.06°C at +30°C / 60 mK
Description
The temperature meter has a measuring range of -20 ... +550 deg C. This means that the temperature meter already covers a wide temperature range of measuring tasks. With a frame rate of 25 Hz, problems can be quickly localised with the temperature meter. The picture-in-picture function allows the real image to be displayed simultaneously with the thermal image. The app enables a clear display and operation of the temperature meter. When connecting the temperature meter to a PC, there are two different functions that can be selected in advance in the settings. With the "PC Connection" setting, the temperature meter is recognised as a mass data storage device. This allows all image, video and measurement data to be copied directly from the temperature meter. With the "PC Camera" function, the temperature meter is recognised as a webcam by the PC. This has the advantage that the current image from the temperature meter can be displayed on a PC, for example, during online meetings or training sessions. In both cases, the temperature meter is independent of the operating system.
