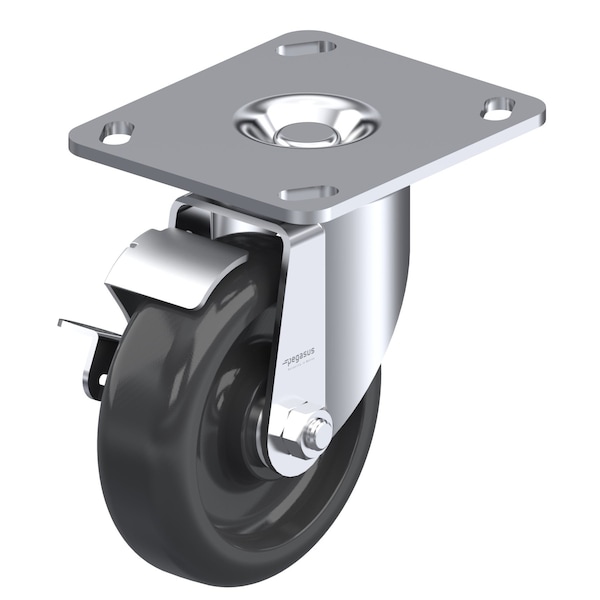

Pegasus Cstr, Swvl Plt, Blck Polyprpyl, 200 lb., Brk P12S-PB030D-P3-WB - main

Cstr, Swvl Plt, Blck Polyprpyl, 200 lb., Brk

  • Mfr # P12S-PB030D-P3-WB

  • Zoro # G0241094

product price:  $14.15
/ea

Key Features

Includes
Strap Type Brake
Core Color
Black
Non-Marking
Yes
Wheel Width
1-1/4 in
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12S-PB030D-P3-WB
Zoro #
G0241094
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Wheel Dia.
3 in
Mounting Bolt Dia.
5/16 in
Overall Height
4-1/4 in
Swivel Radius
2-13/16 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
3-3/4 in x 4-3/8 in

Details

Item
Swivel Caster With Brake
Includes
Strap Type Brake
Core Color
Black
Non-Marking
Yes
Caster Sub-Type
Swivel
Tread
Standard
System of Measurement
Inch
Caster Brake Included
Yes
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Mounting Type
Plate
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Type
Strap Type Brake
Frame Finish
Zinc Plated
Tread Color
Black
Replacement Wheel
Mfr. No. P-PB-030x013/038D
Application
Retail, Industrial, Commercial, Corrosion Resistance
Standards
RoHS, ICWM, NSF
Number of Wheels
1
Caster Frame Material
Steel
Extended Lead
No
Tread Shape
Standard
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
200 lb
Number of Mounting Holes
4
Includes Thread Guards
No
Load Rating Range
Light Duty
Swivel Raceway Type
Double Ball
Wheel Core Material
Polypropylene
Series
P12 Series
Wheel/Tread Material
Polypropylene
Wheel Hardness Rating
60-70 Shore D
Wheel Bearing Type
Delrin
Operating Temperature Range
-20 Degrees To 180 Degrees F

Description

Cstr,Swvl Plt,Blck Polyprpyl,200 lb.,Brk
