Shop PENTAIR SHURFLO

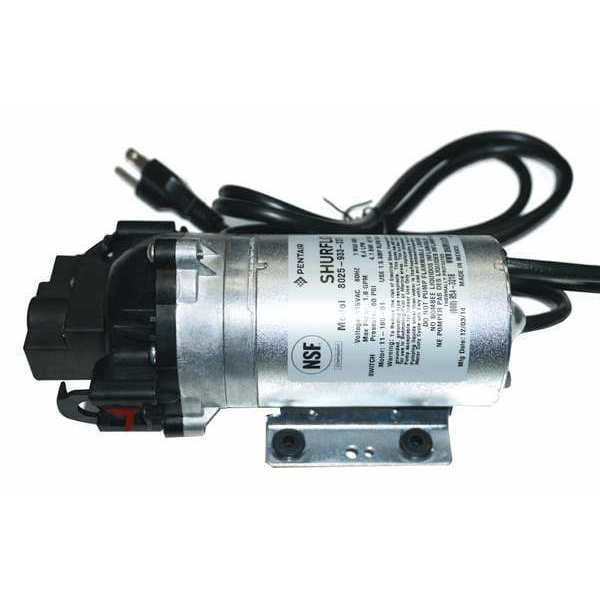

Booster Pump, 1/3 hp, 115V AC, 1 Phase, 3/8 in Barb Inlet Size, 1 Stage, 87 psi Max Pressure

  • Mfr # 8025-933-237

  • Zoro # G6669083

product price:
$
356.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Booster Pump
HP - Pumps
1/3 hp
Voltage - Pumps
115V AC
Phase - Pumps
1
Inlet Size - Pumps
3/8 in Barb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8025-933-237
Zoro #
G6669083
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size - Pumps
3/8 in Barb
Outlet Size - Pumps
3/8 in Barb
Width
4 in
Height
4 in
Max. Dia. Solids
clear water
Manufacturers Warranty Length
1 yr
Length
8 in
Discharge Connection Size
3/8 in
Intake Connection Size
3/8 in
Manufacturer Warranty Length
1 yr
Inlet Diameter
3/8 in
Particle Size Filtered
50 mesh
Discharge Diameter
3/8 in

Details

Item
Booster Pump
Booster Pump Type
Booster Pump
HP - Pumps
1/3 hp
Voltage - Pumps
115V AC
Phase - Pumps
1
Number of Stages - Pumps
1
Max. Pressure - Pumps
87 psi
Housing Material - Pumps
Stainless Steel
HP
1/3
Max. Pressure
87 psi
Motor Enclosure
Stainless Steel
Voltage
115
Impeller Material
Santoprene
Motor Ambient Temp. Rating
34 Degrees to 170 Degrees F
Impeller Type
Diaphragm
GPM @ 20 PSI
1.42
Housing Material
Stainless Steel
Includes
Cord
GPM @ 60 PSI
1.13
Hz
60
Stages
1
Inlet (In.)
1/2
Pressure Switch Setting
Factory Set
Wetted Materials
NSF
Type
Booster Pump
GPM @ 40 PSI
1.26
Phase
Single
Inlet
Quick Connection
Max. Case Pressure
87 psi
Outlet
Industrial Interchange
Amps
0.5
For Use With
Mfr. No. 804-001
Agency Compliance
UL Listed
Nameplate Voltage
115V AC
Pump Operation Type
Electric
Operating Pressure (Maximum)
87 psi
Diaphragm Material
Santoprene
Standards
CSA, NSF Certified, UL Listed
Discharge Connection Type
FNPT
Intake Connection Type
Barbed
Flow Rate (Maximum)
1.9 gpm
Flow Rate - Maximum
1.9 gpm
Inlet Standard
NPTF
Horsepower
1/3 hp
For Media Type
Clear Water
Flow Rate @ 60 psi
1.9 gpm
Number Of Chambers
3
Electrical Connection Type
Plug-In
Discharge Gender
Female
Operating Pressure - Maximum
60 psi
Media Temperature - Minimum
34 Degrees F
Media Temperature - Maximum
180 Degrees F
Number of Stages
1
Pump Technology
Diaphragm
Frequency
60 Hz
Pump Casing Material
Stainless Steel
Pressure Switch
Yes
Discharge Standard
FNPT
Installation
Floor Standing
Flow Rate @ 40 psi
1.9 gpm
Case Pressure - Maximum
117 psi
Full Load Current
0.9 A
Mounting Orientation
Horizontal, Vertical
Number of Diaphragms
1
Motor Design
Permanent Magnet AC Motor
Thermal Protection
Auto
Application
Replacement Pump
Priming
Self-Priming
Power Source
Corded Electric
NSF Certifications for Food and Drinking Water
NSF 18
Flow Rate @ 20 psi
1.9 gpm
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Booster Pump, Discharge Connection Size 3/8 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 1.9 gpm, Housing Material Stainless Steel, Includes Cord, Intake Connection Size 3/8 in, Intake Connection Type Barbed, Nameplate Voltage 115V AC, Operating Pressure (Maximum) 87 psi, Phase Single, Priming Self-Priming, Pump Operation Type Electric, Tank Capacity Not Applicable, Diaphragm Material Santoprene, Flow Rate @ 40 psi 1.9 gpm, Flow Rate @ 60 psi 1.9 gpm
