- Item

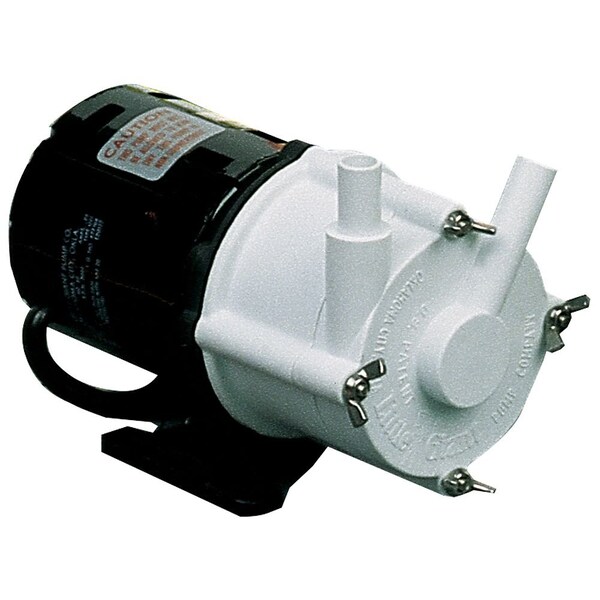

- Magnetic Drive Pump Head
- HP
- 1/70 hp
- Voltage
- 230
- Inlet
- 1/2 in O.D.
- Outlet
- 1/2 in O.D.
- Max. Head
- 10.6 ft
- Operating Pressure
- 4.6 psi
- Housing Material
- Glass-Filled Polypropylene
- GPM of Water @ 15 Ft. of Head
- 0 gph
- GPM of Water @ 24 Ft. of Head
- 0 gph
- GPM of Water @ 50 Ft. of Head
- 0 gph
- GPM of Water @ 6 Ft. of Head
- 90 gph
- Gasket Material
- Buna-N
- Max. Specific Gravity
- 1.1
- GPM of Water @ 3 Ft. of Head
- 165 gph
- GPM of Water @ 18 Ft. of Head
- 0 gph
- Max. Viscosity
- 100 SSU
- Motor Enclosure
- Open Air Over
- GPM of Water @ 40 Ft. of Head
- 0 gph
- Impeller Material
- Polypropylene
- Temp. @ 30 psig
- 150 Degrees F
- Temp. @ 20 psig
- 150 Degrees F
- Mounting
- Horizontal
- Temp. @ 0 psig
- 150 Degrees F
- Cord Type
- Stripped Leads
- Design
- Centrifugal
- GPM of Water @ 9 Ft. of Head
- 20 gph
- Motor Type
- Induction
- Full Load Amps
- 0.66 A
- Application
- Mildly corrosive fluids compatible with materials of construction
- Temp. @ 10 psig
- 150 Degrees F
- Intake Pipe Type
- Hose
- Specific Gravity (Maximum)
- 1.1
- Viscosity (Maximum)
- 100 SUS
- Horsepower (Maximum)
- 1/70 hp
- Discharge Pipe Type
- Hose
- Flow Rate @ 5 ft of Head (Maximum)
- 4.4 gpm
- Motor Mounting Type
- Close Coupled
- Ambient Temperature (Maximum)
- 77 Degrees F
- Compatible with Manufacturer Model Number
- 1-MD
- Product Type
- Magnetic Drive Pump Head
- Impeller Design
- Open
- Volute Material
- Glass-Filled Polypropylene
- Feet of Head (Maximum)
- 10.6 ft
- Media Temperature (Maximum)
- 150 Degrees F
- For Use With Potable Systems
- No
- Flow Rate @ 1 ft of Head (Maximum)
- 3 gpm
- Compatible Manufacturer Part Number
- 1-MD
- Compatible Manufacturer Model Number
- 1-MD
- For Use With Mfr. Model Number
- 1-MD
- Compatible with Manufacturer Model No.
- 1-MD
- Compatible with Mfr. Model No.
- 1-MD
- For Use with Mfr Model Number
- 1-MD
- Compatible Pump Manufacturer Part Number
- 1-MD
- Compatible Mfr. Model Number
- 1-MD
- For Manufacturer Part Number
- 1-MD
- Compatible with Mfr. Model Number
- 1-MD
- Flow Rate (Maximum)
- 3 gpm
- Ambient Temperature - Minimum
- 32 Degrees F
- Full Load Current
- .64 A
- Ambient Temperature - Maximum
- 77 Degrees F
- Pump Design
- End Suction
- Shaft Seal Type
- Sealless
- Shut Off Pressure - Maximum
- 4.6 psi
- Pumping Application
- Chemical Transfer
- Media Temperature - Minimum
- 32 Degrees F
- Priming
- Manual
- Drive Coupling Type
- Magnetic Coupling
- Chemical Compatibility
Acetaldehyde,Acetic Anhydride,Alcohol,Aluminum Chloride 20%,Aluminum Sulfate,Ammonia,Ammonium Hydroxide,Ammonium Nitrate,Ammonium Phosphate,Ammonium Sulfate,Amyl Alcohol,Anhydrous,Antimony Plating,Barium Carbonate,Barium Chloride,Barium Hydroxide,Barium Sulfate,Barium Sulfide,Borax,Boric Acid,Calcium Bisulfide,Calcium Bisulfite,Calcium Carbonate,Calcium Chloride,Calcium Hydroxide,Calcium Hypochlorite,Calcium Sulfate,Copper Pyrophosphate,Copper Chloride,Copper Cyanide,Copper Nitrate,Copper Sulfate,Copper Sulfate 5%,Dibasic,Magnesium Sulfate,Ferric Sulfate,Ferrous Chloride,Ferrous Sulfate,Formaldehyde 40%,Fuel Oil,Glycerin,Gold Plating,Indium Sulfamate Plating,Iron Plating,Lactic Acid,Lead Acetate,Lubricants,Magnesium Chloride,Magnesium Hydroxide,Magnesium Nitrate,Mercuric Chloride,Mercuric Cyanide,Naphtha,Nickel Chloride,Nickel Plating,Nickel Sulfate,Plating Solutions,Potassium Bicarbonate,Potassium Bromide,Potassium Carbonate,Potassium Chlorate,Potassium Chloride,Potassium Cyanide Solutions,Potassium Dichromate,Potassium Nitrate,Potassium Permanganate,Potassium Sulfate,Sea Water,Silver Plating,Soap,Sodium Bisulfate,Sodium Bisulfite,Sodium Carbonate,Sodium Chloride,Sodium Cyanide,Sodium Silicate,Sodium Sulfate,Sodium Thiosulphate,Stannic Chloride,Tribasic,Zinc Chloride,Zinc Plating,Zinc Sulfate
- Best Efficiency Head
- 5 ft
- Pump Drive Configuration
- Close-Coupled
- Mounting Orientation
- Horizontal
- Inlet Standard
- Hose
- Discharge Standard
- Hose
- Media Temperature - Maximum
- 150 Degrees F
- Pump Mounting Style
- Base-Mounted
- Hazardous Location Class
- Not Rated
- Case Pressure - Maximum
- 4.6 psi
- Number of Stages
- 1
- Best Efficiency Flow
- 2 gpm
