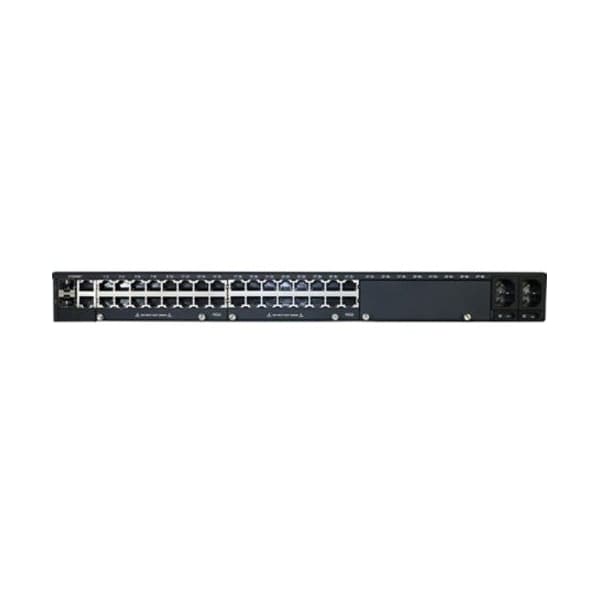

Perle Systems Iolan Scg34 R-W Console Server 04032934 - main

Iolan Scg34 R-W Console Server

  • Mfr # 04032934

  • Zoro # G4410317

product price: $5,669.99
/ea
Free Shipping & Returns

Key Features

Width
17.1"
Height
1.7"
Depth
10.4"
Wireless LAN Standard
IEEE 802.11a/b/g/n
Product Type
Device Server
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
04032934
Zoro #
G4410317
UPC #
734660329347
Country of Origin
Canada

Dimensions

Width
17.1"
Height
1.7"
Depth
10.4"

Details

Wireless LAN Standard
IEEE 802.11a/b/g/n
Product Type
Device Server
Number of USB Ports
3
Environmentally Friendly
Yes
Serial Port
Yes
Package Contents
IOLAN SCG34 R-W Console Server, Mounting Hardware
Device Type
Console Server
Network Standard
1000Base-X, 10/100/1000Base-T
ISM Maximum Frequency
2.40 GHz
Processor Speed
500 MHz
ISM Band
Yes
Network (RJ-45)
Yes
UNII Band
Yes
Number of Network (RJ-45) Ports
2
Certifications & Standards
Emissions: FCC 47 Part 15 Subpart B Class A, ICES-003 (Canada), EN55032 (CISPR32), EN61000-3-2 Limits for Harmonic Current Emissions, EN61000-3-3 Limits of Voltage Fluctuations and Flicker Immunity: EN55024, EN 61000-4-2 (ESD): Contact: , EN 61000-4-3 (RS): , EN 61000-4-4 (EFT): , EN 61000-4-5 (Surge): , EN 61000-4-6 (CS): , EN 61000-4-8 (PFMF) , EN 61000-4-11 Safety: UL/ULC/EN 62368-1 ( previously 60950-1 ) , CAN/CSA C22.2 No. 62368-1-15
Management Port
Yes
Total Number of Expansion Slots
2
Mount Type
Rail-mountable, Rack-mountable
Ethernet Technology
Gigabit Ethernet
Standard Memory
1000 MB
Wireless LAN
Yes
Number of Serial Ports
33
USB
Yes
UNII Maximum Frequency
5 GHz
Media Type Supported
Twisted Pair, Optical Fiber

Description

IOLAN SCG34 R-W Console Server: 32 x RS232 RJ45 interfaces with software configurable Cisco pinouts, 2 x USB Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz,Mico SD Card Slot, Expandable using IOLAN G16 RS232 Card and IOLAN G16 USB Card, Micro USB and RS232 RJ45 Console Admin Ports, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, Dual AC Power, USA power adapter included.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
