Shop GAST

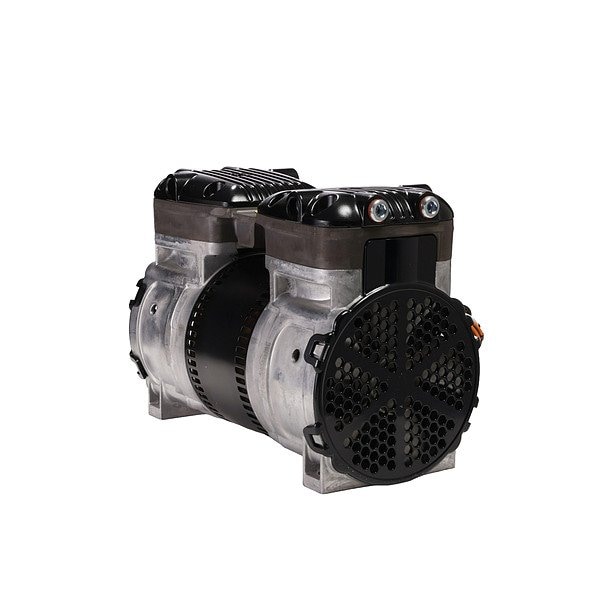

Rocking Piston Air Comp, 1/2 HP, 50/125psi

  • Mfr # 87R642-101R-N470X

  • Zoro # G0243927

product price:
$
651.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
2
HP
1/2 hp
Phase
Single
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
87R642-101R-N470X
Zoro #
G0243927
UPC #
-
Country of Origin
United States
Item
Rocking Piston Air Compressor
Lubrication Type
Oil Free
Number of Cylinders
2
HP
1/2 hp
Phase
Single
Voltage
115/230V AC
Sound Rating
65 dBA
Full Load Amps
5.7/2.8 A
Motor Type
Electric
Max. PSI Cont./Int.
50/125
Free Air CFM @ 20 PSI
3.5
Valve
Stainless Steel
Power Cord
No
Temp. Range
5 Degrees to 40 Degrees C
Free Air CFM @ 0 PSI
4.2
Free Air CFM @ 10 In. Hg
2.8
Cylinder Material
Aluminum
Free Air CFM @ 50 PSI
2.6
Free Air CFM @ 20 In. Hg
1.0
Free Air CFM @ 100 PSI
1.8
Free Air CFM @ 40 PSI
2.8
Hz
50/60
Design
Rocking Piston
Max. Vacuum
25 in Hg
RPM
1725/1425
Standards
CE, CUR
Application
Industrial
Free Air CFM @ 0 In. Hg
4.0
Thermal Protection
Automatic Reset
Finish
Paint
Current Rating
2.6 A, 2.8 A, 5.1 A, 5.7 A
Inlet Type
NPT
Outlet Type
NPT
Sound Level
65 dBA
Piston Type
Rocking
Air Tank Style
Tankless
Maximum Speed
1,725 RPM
Minimum Operating Temperature
41 Degrees F
Maximum Intermittent Pressure
125 psi
Pump Type
Rocking Piston
Frequency
50 Hz, 60 Hz
Output Power
0.5 hp
Maximum Vacuum
25 in Hg
Valve Material
Stainless Steel
Maximum Continuous Pressure
50 psi
Free Air Flow Rate
4.3 cfm
Maximum Operating Temperature
104 Degrees F

Description

The Gast 87R642-101R-N470X is an oil-free, twin-cylinder rocking piston air compressor. It operates on 115/230V AC single-phase power at 50 Hz, 60 Hz at a rated 1/2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 1.8 CFM at 100 psi up to 4.3 CFM at 0 psi, a maximum continuous pressure of 50 psi, and a maximum vacuum of 25 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 5.7/2.8 A, and a measured sound level of 65 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, an electric motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.625 x 5.125 x 7.125 in (L x W x H).
