  5. Industrial Compound Gauge, 30 to 0 to 150 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

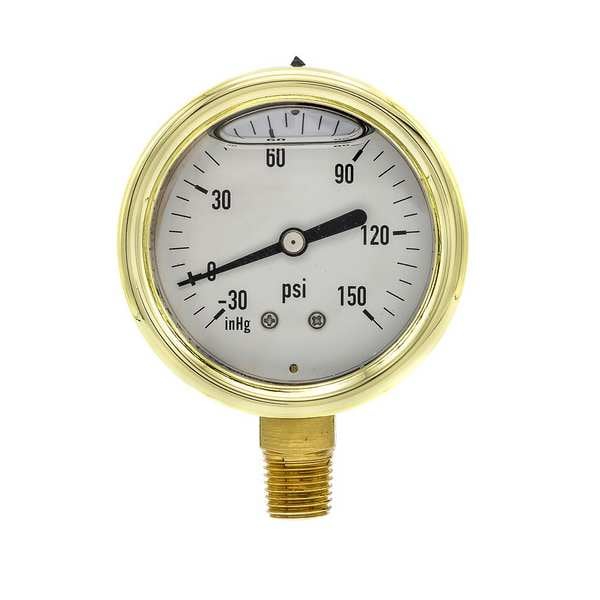

Pic Gauges Industrial Compound Gauge, 30 to 0 to 150 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 601L-254CF - main

Industrial Compound Gauge, 30 to 0 to 150 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 601L-254CF

  • Zoro # G8654974

product price:  $35.85
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
601L-254CF
Zoro #
G8654974
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.32"
Case Diameter
2.58 in
Case Depth
1.49 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Forged Brass
Series
601L
Lens Material
Polycarbonate
Primary Pressure Range
30 to 0 to 150
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
5/2
Gauge Application
In Applications Where Vibration or Pulsation is Present
Calibration Certificate Included
No
Case Color
Gold
Includes
Vent Plug
Gauge Filled With
Glycerin
Smallest Graduation
2 psi, 5 in Hg
Socket Material
Copper Alloy
Case Material
Forged Brass
Wetted Materials
Copper
Connection Type
MNPT
Standards
ASME
Sensor Material
Copper Alloy
Bezel Material
Stainless Steel
Includes Mounting Hardware
No
Pointer Material
Aluminum
Process Connection Gender
Male
Dry Dampening Feature
None
Pointer Color
Black
Gauge Case Liquid
Glycerin
Pressure Range Type
Compound
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Non-Sparking
No
Includes Calibration Certificate
No
Bezel Mounting Type
Fixed
Dial Color
White
Accuracy Scale
Mid-Scale
Primary Scale Minor Graduations
2, 5
Scale Type
Single
Cleaned for Oxygen Service
No
Includes Vent Plug
Yes
Pressure Gauge Type
Industrial Pressure Gauge
Removable Bezel
No
Field Fillable
No
Accuracy Grade
ASME B40.100 Grade A
Freeze Resistant Movement
No
Vibration Resistance
Liquid-Filled
Maximum Pressure
150 psi
Operating Temperature Range
30 Degrees to 160 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Process Media Temperature - Minimum
30 Degrees F
Process Media Temperature - Maximum
160 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Minimum
0 in Hg
NEMA Enclosure Rating
No Enclosure
Compatible with Series
601L
Primary Scale Pressure Measurement - Maximum
150 psi
Primary Scale Vacuum Measurement - Maximum
160 psi
Secondary Scale Units
bar
Case Liquid
Glycerin
Operating Temperature - Maximum
180 Degrees F
Compatible with Brand
Universal

Description

Industrial Compound Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Forged Brass, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Gold, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 150, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
