  5. Industrial Compound Gauge, 30 to 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

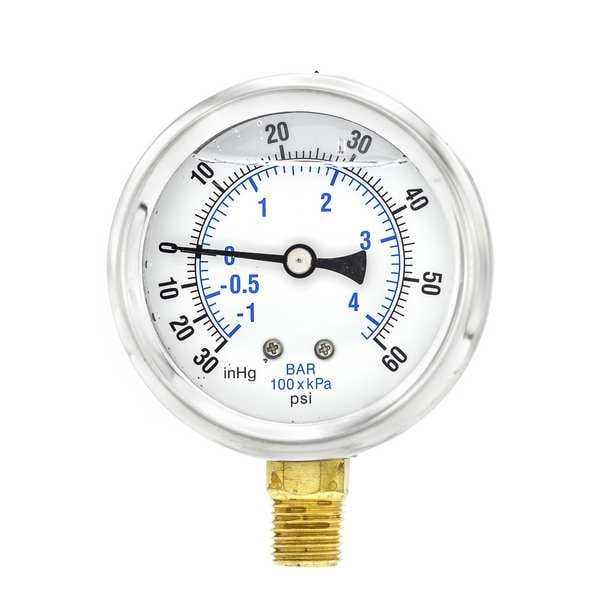

Pic Gauges Industrial Compound Gauge, 30 to 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PRO-201L-254CD - main

Industrial Compound Gauge, 30 to 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PRO-201L-254CD

  • Zoro # G5120005

product price:  $17.59
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PRO-201L-254CD
Zoro #
G5120005
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.30"
Case Depth
1.2 in
Nominal Dial Size
2 1/2 in
Case Diameter
2.65 in
Manufacturer Warranty Length
1 yr
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
201L
Lens Material
Polycarbonate
Primary Pressure Range
30 to 0 to 60
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Application
General Purpose
Gauge Filled With
Glycerin
Includes
Vent Plug
Gauge Primary Range Smallest Graduation
2/1
Smallest Graduation
1 psi, 2 in Hg
Calibration Certificate Included
No
Case Color
Metallic
Case Material
Stainless Steel
Socket Material
Copper Alloy
Standards
ASME
Connection Type
MNPT
Wetted Materials
Copper
Bezel Mounting Type
Fixed
Vibration Resistance
Liquid-Filled
Dry Dampening Feature
None
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Pressure Range Type
Compound
Secondary Scale Units
bar
Pointer Color
Black
Pressure Gauge Type
Industrial Pressure Gauge
Accuracy Scale
Mid-Scale
Includes Vent Plug
Yes
Includes Calibration Certificate
No
Sensor Material
Copper Alloy
Bezel Material
Stainless Steel
Process Connection Gender
Male
Pointer Material
Aluminum
Freeze Resistant Movement
No
Removable Bezel
No
Gauge Case Liquid
Glycerin
Scale Type
Dual
Primary Scale Minor Graduations
1, 2
Non-Sparking
No
Field Fillable
No
Secondary Pressure Range
0 to 4
Cleaned for Oxygen Service
No
Accuracy Grade
ASME B40.100 Grade A
Includes Mounting Hardware
No
Dial Color
White
Maximum Pressure
60
Operating Temperature Range
30 Degrees to 160 Degrees F
Primary Scale Vacuum Measurement - Maximum
60 psi
Compatible with Series
201L
Secondary Scale Vacuum Measurement - Minimum
0 bar
Secondary Scale Pressure Measurement - Maximum
4 bar
Process Media Temperature - Minimum
30 Degrees F
Process Media Temperature - Maximum
160 Degrees F
Case Liquid
Glycerin
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Minimum
30 in Hg
Secondary Scale Pressure Measurement - Minimum
0 bar
Operating Temperature - Maximum
180 Degrees F
NEMA Enclosure Rating
No Enclosure
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Maximum
60 psi
Operating Temperature - Minimum
-30 Degrees F

Description

Industrial Compound Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 60, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
