  5. Industrial Compound Gauge, 30 to 0 to 100 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

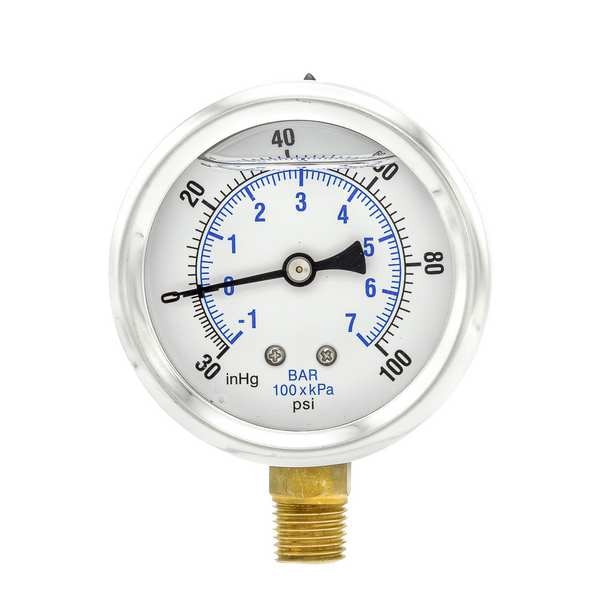

Pic Gauges Industrial Compound Gauge, 30 to 0 to 100 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PRO-201L-254CE - main

Industrial Compound Gauge, 30 to 0 to 100 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PRO-201L-254CE

  • Zoro # G5119996

product price:  $14.59
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PRO-201L-254CE
Zoro #
G5119996
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.30"
Case Depth
1.2 in
Manufacturer Warranty Length
1 yr
Case Diameter
2.65 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
201L
Lens Material
Polycarbonate
Primary Pressure Range
30 to 0 to 100
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Includes
Vent Plug
Gauge Primary Range Smallest Graduation
5/2
Gauge Application
General Purpose
Smallest Graduation
2 psi, 5 in Hg
Calibration Certificate Included
No
Case Color
Metallic
Gauge Filled With
Glycerin
Socket Material
Copper Alloy
Case Material
Stainless Steel
Standards
ASME
Wetted Materials
Copper
Connection Type
MNPT
Includes Vent Plug
Yes
Scale Type
Dual
Pointer Color
Black
Secondary Scale Units
bar
Freeze Resistant Movement
No
Bezel Mounting Type
Fixed
Bezel Material
Stainless Steel
Process Connection Gender
Male
Vibration Resistance
Liquid-Filled
Pressure Gauge Type
Industrial Pressure Gauge
Dry Dampening Feature
None
Includes Calibration Certificate
No
Pointer Material
Aluminum
Field Fillable
No
Accuracy Grade
ASME B40.100 Grade A
Sensor Material
Copper Alloy
Removable Bezel
No
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Pressure Range Type
Compound
Gauge Case Liquid
Glycerin
Dial Color
White
Cleaned for Oxygen Service
No
Includes Mounting Hardware
No
Primary Scale Minor Graduations
2, 5
Secondary Pressure Range
0 to 7
Accuracy Scale
Mid-Scale
Non-Sparking
No
Maximum Pressure
100 psi
Operating Temperature Range
30 Degrees to 160 Degrees F
Secondary Scale Pressure Measurement - Maximum
7 bar
Primary Scale Vacuum Measurement - Minimum
30 in Hg
Operating Temperature - Minimum
-30 Degrees F
Secondary Scale Vacuum Measurement - Minimum
0 bar
Secondary Scale Pressure Measurement - Minimum
0 bar
Compatible with Series
201L
Primary Scale Pressure Measurement - Maximum
100 psi
Process Media Temperature - Minimum
30 Degrees F
Primary Scale Vacuum Measurement - Maximum
100 psi
Process Media Temperature - Maximum
160 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Case Liquid
Glycerin
Compatible with Brand
Universal
Operating Temperature - Maximum
180 Degrees F
NEMA Enclosure Rating
No Enclosure

Description

Industrial Compound Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 100, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
