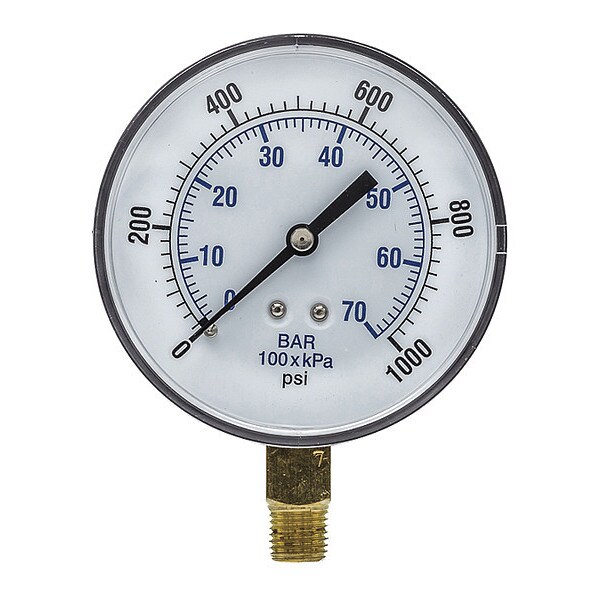

Pic Gauges Industrial Pressure Gauge, 0 to 1,000 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location SEP-101D-354M - main

Industrial Pressure Gauge, 0 to 1,000 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # SEP-101D-354M

  • Zoro # G7286993

product price:  $10.79
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Commercial
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SEP-101D-354M
Zoro #
G7286993
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 1/2 in
Case Depth
1.14 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
3 1/2 in
Case Diameter
2.09 in
Nominal Dial Diameter
3 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Commercial
Gauge Case Material
Steel
Series
SEP 100
Lens Material
Plastic
Primary Pressure Range
0 to 1,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Socket Material
Copper Alloy
Gauge Application
General-Purpose Case
Gauge Secondary Range Values
0 to 1000
Case Material
Steel
Calibration Certificate Included
No
Includes
Plastic Case
Gauge Primary Range Smallest Graduation
200
Graduations
200 psi
Gauge Primary Range Numbered Graduations
200
Case Color
Black
Connection Type
MNPT
Standards
ASME
Pressure Gauge Type
Industrial Pressure Gauge
Field Fillable
No
Secondary Pressure Range
0 to 69
Accuracy Scale
Mid-Scale
Pressure Range Type
Pressure
Dial Color
White
Cleaned for Oxygen Service
No
Gauge Case Liquid
None
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Dry Dampening Feature
None
Non-Sparking
No
Removable Bezel
No
Includes Vent Plug
No
Process Connection Gender
Male
Accuracy Grade
ASME B40.100 Grade B
Primary Scale Minor Graduations
200
Primary Scale Numeric Increments
200
Vibration Resistance
None
Includes Calibration Certificate
No
Includes Mounting Hardware
No
Freeze Resistant Movement
No
Pointer Color
Black
Sensor Material
Copper Alloy
Pointer Material
Aluminum
Scale Type
Dual
Secondary Scale Units
bar
Operating Temperature Range
-50 Degrees to 160 Degrees F
Process Media Temperature - Maximum
140 Degrees F
Case Liquid
None
Primary Scale Vacuum Measurement - Minimum
0 psi
NEMA Enclosure Rating
No Enclosure
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
140 Degrees F
Secondary Scale Pressure Measurement - Maximum
69 bar
Operating Temperature - Minimum
-40 Degrees F
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Maximum
1,000 psi
Secondary Scale Pressure Measurement - Minimum
0 bar
Compatible with Series
SEP 100
Secondary Scale Vacuum Measurement - Maximum
70 bar
Primary Scale Pressure Measurement - Maximum
1,000 psi
Secondary Scale Vacuum Measurement - Minimum
0 bar
Process Media Temperature - Minimum
-40 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 1,000, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
