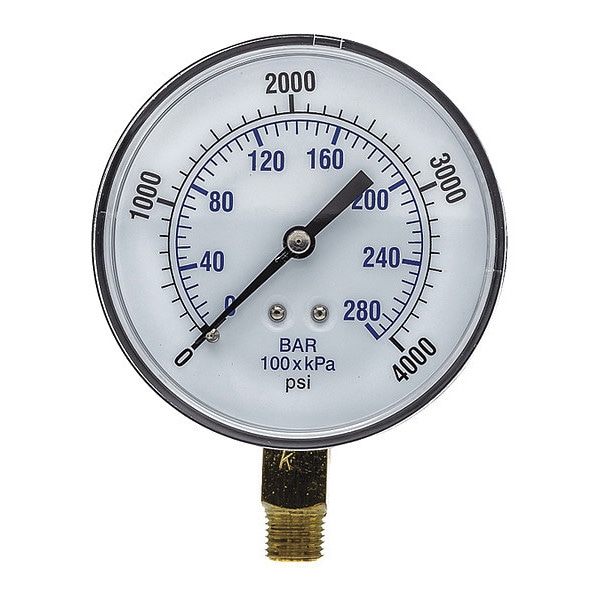

Pic Gauges Industrial Pressure Gauge, 0 to 4,000 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location SEP-101D-354Q - main

Industrial Pressure Gauge, 0 to 4,000 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # SEP-101D-354Q

  • Zoro # G7286503

product price:  $10.39
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Commercial
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SEP-101D-354Q
Zoro #
G7286503
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 1/2 in
Case Diameter
2.09 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
3 1/2 in
Case Depth
1.14 in
Nominal Dial Diameter
3 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Commercial
Gauge Case Material
Steel
Series
SEP 100
Lens Material
Plastic
Primary Pressure Range
0 to 4,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Secondary Range Values
0 to 250
Case Color
Black
Includes
Plastic Case
Calibration Certificate Included
No
Graduations
1000 psi
Socket Material
Copper Alloy
Gauge Primary Range Numbered Graduations
1000
Gauge Application
General-Purpose Case
Case Material
Steel
Connection Type
MNPT
Standards
ASME
Pressure Range Type
Pressure
Includes Mounting Hardware
No
Accuracy Scale
Mid-Scale
Sensor Material
Copper Alloy
Gauge Case Liquid
None
Pointer Material
Aluminum
Field Fillable
No
Pointer Color
Black
Removable Bezel
No
Primary Scale Minor Graduations
1,000
Cleaned for Oxygen Service
No
Secondary Scale Units
bar
Secondary Pressure Range
0 to 276
Pressure Gauge Type
Industrial Pressure Gauge
Scale Type
Dual
Dry Dampening Feature
None
Includes Vent Plug
No
Non-Sparking
No
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Vibration Resistance
None
Includes Calibration Certificate
No
Freeze Resistant Movement
No
Accuracy Grade
ASME B40.100 Grade B
Process Connection Gender
Male
Dial Color
White
Primary Scale Numeric Increments
1,000
Operating Temperature Range
-50 Degrees to 160 Degrees F
Secondary Scale Vacuum Measurement - Maximum
280 bar
Secondary Scale Pressure Measurement - Minimum
0 bar
Secondary Scale Pressure Measurement - Maximum
276 bar
Primary Scale Pressure Measurement - Maximum
4,000 psi
Process Media Temperature - Maximum
140 Degrees F
Case Liquid
None
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Vacuum Measurement - Minimum
0 bar
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Vacuum Measurement - Maximum
4,000 psi
Operating Temperature - Maximum
140 Degrees F
Compatible with Series
SEP 100
Primary Scale Vacuum Measurement - Minimum
0 psi
NEMA Enclosure Rating
No Enclosure
Process Media Temperature - Minimum
-40 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 4,000, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
