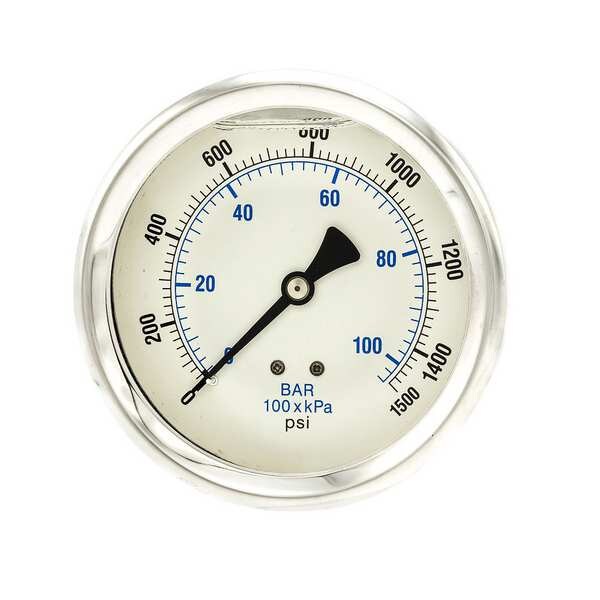

Pic Gauges Industrial Pressure Gauge, 0 to 1,500 psi, 4 in Dial, 1/4 in NPT, Center Back Location 202L-404N - main

Industrial Pressure Gauge, 0 to 1,500 psi, 4 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 202L-404N

  • Zoro # G9721415

product price:  $39.89
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
202L-404N
Zoro #
G9721415
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Length
3.15"
Case Depth
1.78 in
Case Diameter
4.29 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
4 in
Nominal Dial Diameter
4 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
202L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 1,500
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Includes
Vent Plug
Smallest Graduation
20 psi
Gauge Primary Range Smallest Graduation
20
Case Color
Metallic
Calibration Certificate Included
No
Gauge Application
In Applications Where Vibration or Pulsation is Present
Gauge Filled With
Glycerin
Socket Material
Copper Alloy
Case Material
Stainless Steel
Connection Type
MNPT
Wetted Materials
Copper
Standards
ASME
Vibration Resistance
Liquid-Filled
Removable Bezel
No
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Secondary Pressure Range
0 to 103
Includes Calibration Certificate
No
Pressure Range Type
Pressure
Bezel Material
Stainless Steel
Accuracy Grade
ASME B40.100 Grade 1A
Bezel Mounting Type
Fixed
Freeze Resistant Movement
No
Includes Vent Plug
Yes
Secondary Scale Units
bar
Accuracy Scale
Full Scale
Pointer Material
Aluminum
Primary Scale Minor Graduations
20
Pressure Gauge Type
Industrial Pressure Gauge
Cleaned for Oxygen Service
No
Scale Type
Dual
Non-Sparking
No
Field Fillable
No
Dry Dampening Feature
None
Sensor Material
Copper Alloy
Case Construction
Stainless Steel
Dial Color
White
Includes Mounting Hardware
No
Process Connection Gender
Male
Pointer Color
Black
Dial Face Material
Aluminum
Gauge Case Liquid
Glycerin
Maximum Pressure
1,500 psi
Operating Temperature Range
30 Degrees to 160 Degrees F
Primary Scale Pressure Measurement - Maximum
1,500 psi
Compatible with Series
202L
Process Media Temperature - Minimum
30 Degrees F
Operating Temperature - Minimum
30 Degrees F
Secondary Scale Vacuum Measurement - Minimum
0 bar
Operating Temperature - Maximum
160 Degrees F
NEMA Enclosure Rating
No Enclosure
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Minimum
0 psi
Case Liquid
Glycerin
Process Media Temperature - Maximum
160 Degrees F
Primary Scale Vacuum Measurement - Maximum
1,500 psi
Secondary Scale Pressure Measurement - Maximum
103 bar
Secondary Scale Pressure Measurement - Minimum
0 bar

Description

Industrial Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-1.0 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 1,500, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
