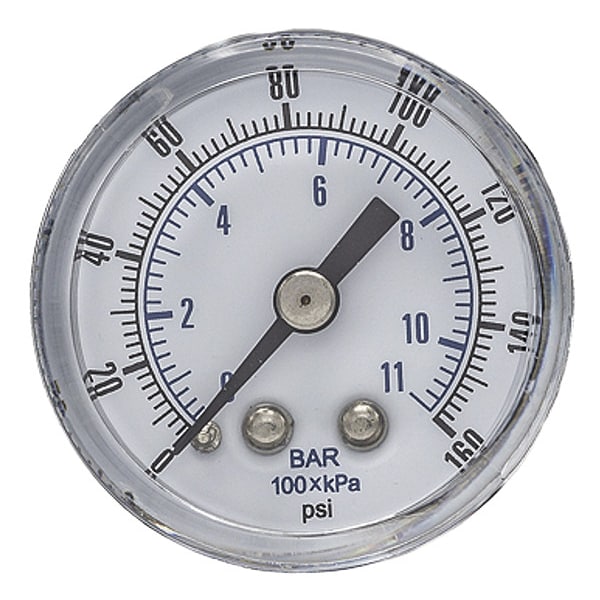

Pic Gauges Industrial Pressure Gauge, 0 to 160 psi, 1 1/2 in Dial, 1/8 in BSPT, Center Back Location SEP-102D-158F-BSPT - main

Industrial Pressure Gauge, 0 to 160 psi, 1 1/2 in Dial, 1/8 in BSPT, Center Back Location

  • Mfr # SEP-102D-158F-BSPT

  • Zoro # G7286354

product price:  $5.49
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
BSPT
Dial Size (In.)
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SEP-102D-158F-BSPT
Zoro #
G7286354
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
1 1/2 in
Case Depth
1.06 in
Case Diameter
2.11 in
Nominal Dial Diameter
1 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
BSPT
Application
Commercial
Gauge Case Material
Steel
Series
SEP 100
Lens Material
Plastic
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Graduations
20 psi
Gauge Primary Range Smallest Graduation
20
Includes
Plastic Case
Calibration Certificate Included
No
Case Color
Black
Gauge Primary Range Numbered Graduations
20
Gauge Application
General-Purpose Case
Case Material
Steel
Gauge Secondary Range Values
0 to 11
Socket Material
Copper Alloy
Connection Type
BSPT
Standards
ASME
Cleaned for Oxygen Service
No
Includes Calibration Certificate
No
Secondary Pressure Range
0 to 11
Includes Mounting Hardware
No
Dial Color
White
Field Fillable
No
Removable Bezel
No
Freeze Resistant Movement
No
Primary Scale Minor Graduations
20
Pointer Material
Aluminum
Dry Dampening Feature
None
Includes Vent Plug
No
Scale Type
Dual
Primary Scale Numeric Increments
20
Pointer Color
Black
Pressure Range Type
Pressure
Accuracy Scale
Mid-Scale
Process Connection Gender
Male
Vibration Resistance
None
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Pressure Gauge Type
Industrial Pressure Gauge
Secondary Scale Units
bar
Sensor Material
Copper Alloy
Accuracy Grade
ASME B40.100 Grade B
Non-Sparking
No
Gauge Case Liquid
None
Operating Temperature Range
-50 Degrees to 160 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
140 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 psi
Secondary Scale Vacuum Measurement - Maximum
11 bar
Process Media Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
No Enclosure
Secondary Scale Pressure Measurement - Minimum
0 bar
Primary Scale Pressure Measurement - Maximum
160 psi
Secondary Scale Vacuum Measurement - Minimum
0 bar
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Maximum
160 psi
Compatible with Series
SEP 100
Secondary Scale Pressure Measurement - Maximum
11 bar
Case Liquid
None
Process Media Temperature - Maximum
140 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Industrial Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type BSPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 160, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
