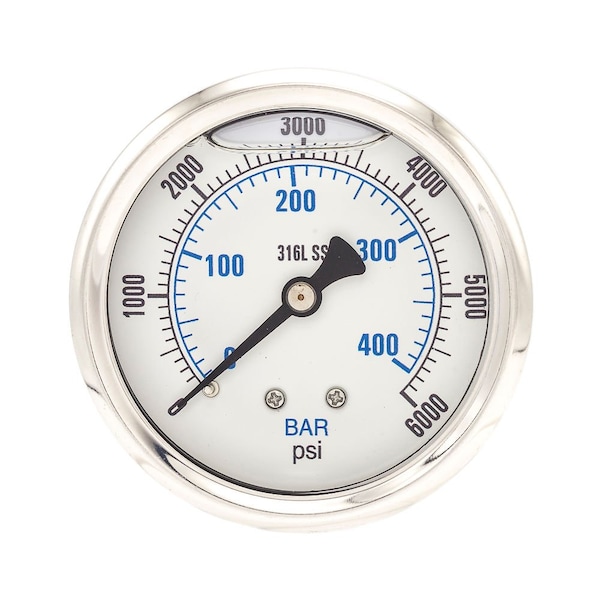

Pic Gauges Industrial Pressure Gauge, 0 to 6,000 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location PRO-302L-254S-01 - main

Industrial Pressure Gauge, 0 to 6,000 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PRO-302L-254S-01

  • Zoro # G6663133

product price:  $37.15
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-302L-254S-01
Zoro #
G6663133
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
2.71"
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
1 yr
Case Diameter
2.71 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Plastic
Primary Pressure Range
0 to 6,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Includes
Vent Plug
Gauge Primary Range Smallest Graduation
100
Gauge Filled With
Glycerin
Gauge Primary Range Numbered Graduations
1000
Calibration Certificate Included
No
For Use With
Media Compatible with 316L Stainless Steel, Medium to High Pressures
Gauge Application
In Applications Where Vibration or Pulsation is Present
Case Color
Metallic
Required Gauge Adapter
U-Clamp-25 or Flange-25
Graduations
1000 psi
Smallest Graduation
100 psi
Socket Material
316 Stainless Steel
Case Material
Stainless Steel
Standards
ASME
Wetted Materials
Stainless Steel
Connection Type
MNPT
Vibration Resistance
Liquid-Filled
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Secondary Pressure Range
0 to 414
Pressure Range Type
Pressure
Dry Dampening Feature
None
Includes Vent Plug
Yes
Includes Calibration Certificate
No
Secondary Scale Units
bar
Pointer Material
Aluminum
Primary Scale Minor Graduations
100
Primary Scale Numeric Increments
1,000
Non-Sparking
No
Accuracy Grade
ASME B40.100 Grade A
Bezel Mounting Type
Crimped
Process Connection Gender
Male
Pressure Gauge Type
Industrial Pressure Gauge
Dial Color
White
Accuracy Scale
Mid-Scale
Cleaned for Oxygen Service
No
Removable Bezel
No
Includes Mounting Hardware
No
Bezel Material
Stainless Steel
Pointer Color
Black
Scale Type
Dual
Freeze Resistant Movement
No
Gauge Case Liquid
Glycerin
Sensor Material
316 Stainless Steel
Field Fillable
No
Maximum Pressure
6000
Operating Temperature Range
30 Degrees to 160 Degrees F
Case Liquid
Glycerin
NEMA Enclosure Rating
No Enclosure
Process Media Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Secondary Scale Pressure Measurement - Maximum
414 bar
Operating Temperature - Maximum
180 Degrees F
Process Media Temperature - Minimum
35 Degrees F
Primary Scale Vacuum Measurement - Maximum
6,000 psi
Primary Scale Pressure Measurement - Maximum
6,000 psi
Secondary Scale Pressure Measurement - Minimum
0 bar
Secondary Scale Vacuum Measurement - Maximum
400 bar
Primary Scale Vacuum Measurement - Minimum
0 psi
Compatible with Brand
Universal
Secondary Scale Vacuum Measurement - Minimum
0 bar
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible with Series
PRO-300

Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 6,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
