  5. Round Boiler Gauge, 0 to 100 psi, 1/2 in MNPT, Steel, Silver
Pic Gauges Round Boiler Gauge, 0 to 100 psi, 1/2 in MNPT, Steel, Silver TRI-HD-302R-E - main

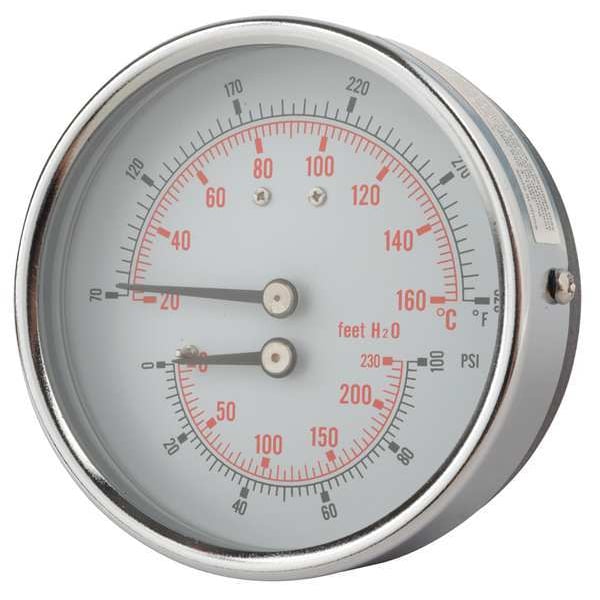

Round Boiler Gauge, 0 to 100 psi, 1/2 in MNPT, Steel, Silver

  • Mfr # TRI-HD-302R-E

  • Zoro # G6388602

product price:  $56.29
/ea

Key Features

Accuracy
+/-3-2-3%
Application
Boilers
Gauge Primary Range Values
0 to 100
Gauge Primary Range Units
psi
Gauge Connection Type
MNPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TRI-HD-302R-E
Zoro #
G6388602
UPC #
-
Country of Origin
China

Dimensions

Gauge Connection Size
1/2 in
Boiler Gauge Nominal Size
3 in
Boiler Gauge Stem Length
2.0 in
Manufacturers Warranty Length
1 yr Limited
Stem Length (In.)
2
Boiler Gauge Stem Extension Length
0.32 in
Nominal Dial Size
3 in
Case Diameter
3.21 in
Stem Insertion Length
2 in
Process Connection Size
1/2 in
Case Height
3.21 in
Case Depth
1.29 in
Stem Diameter
0.32 in
Neck Extension Length
0.32 in
Nominal Dial Diameter
3 in

Details

Accuracy
+/-3-2-3%
Application
Boilers
Gauge Primary Range Values
0 to 100
Gauge Primary Range Units
psi
Gauge Connection Type
MNPT
Basic Gauge Case Material
Steel
Case Color
Silver
Basic Gauge Lens Material
Plastic
Tube Material
Copper Alloy
Socket Material
Copper Alloy
Gauge Accuracy
+/-3-2-3%
Temp. Range (C)
20 Degrees to 160 Degrees
Basic Gauge Wetted Parts
Copper
Stem Extension (In.)
0.32
Window
Plastic
Boiler Gauge Temp. Range - F
80 Degrees to 320 Degrees
Boiler Gauge Type
Round Boiler Gauge
Case Material
Steel
Item
Round Boiler Gauge
Boiler Gauge Temp. Range (F)
80 Degrees to 320 Degrees
Gauge Connection Location
Center Back
Gauge Case Material
Steel
Series
TRI-HD
Pressure Gauge Type
Tridicator Boiler Gauge
Primary Scale Units
psi
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Temperature Scale Units
Degrees C, Degrees F
Process Connection Location
Center Back
Temperature Range °C
20 Degrees to 160 Degrees C
Pointer Material
Aluminum
Compatible Process Media
Water
Neck Extension
0.32 in
Pressure Range Type
Pressure
Pointer Color
Black
Dial Color
White
Scale Type
Dual
Hazardous Location Rating
Not Rated
Lens Material
Glass
Temperature Accuracy
+/-3-2-3%
Accuracy Grade
ASME B40.100 Grade B
Secondary Pressure Range
0 to 230
Secondary Scale Units
ft wc
Process Connection Type
NPT
Process Connection Gender
Male
Accuracy Scale
Mid-Scale
Pressure Accuracy
+/-3-2-3%
Stem Material
Copper Alloy
Sensor Material
Copper Alloy
Case Shape
Round
Primary Pressure Range
0 to 100
Temperature Range °F
70 Degrees to 320 Degrees F
Temperature Range °F
70 Degrees to 320 Degrees F
Temperature Range °C
20 Degrees to 160 Degrees C
Secondary Scale Pressure Measurement - Maximum
230 ft wc
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
180 Degrees F
Process Media Temperature Measurement - Maximum
320 Degrees F
Process Media Temperature Accuracy
+/-3-2-3%
NEMA Enclosure Rating
No Enclosure
Secondary Scale Pressure Measurement - Minimum
0 ft wc
Process Media Temperature Measurement - Minimum
70 Degrees F
Primary Scale Pressure Measurement - Maximum
0 psi
IP Rating
IP52
Primary Scale Pressure Measurement - Minimum
100 psi
Process Media Temperature Scale Units
Degrees C, Degrees F

Description

Round Boiler Gauge, Boiler Gauge Nominal Size 3 in, Gauge Connection Location Center Back, Gauge Connection Type MNPT, Gauge Connection Size 1/2 in, 0 to 100, psi, Gauge Accuracy +/-3-2-3 Percent, Basic Gauge Case Material Steel, Basic Gauge Wetted Parts Copper, Basic Gauge Lens Material Plastic, 80 Degrees to 320 Degrees Boiler Gauge Temp. Range - F, Temp. Range (C) 20 Degrees to 160 Degrees , Case Material Steel, Case Color Silver, Socket Material Copper Alloy, Tube Material Copper Alloy

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
