Safety Relay
Mfr # 777301
Zoro # G023561882
product price:Â
$
309.99
/ea
Free Shipping & Returns
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 777301
- Zoro #
- G023561882
- UPC #
- -
- Country of Origin
- Germany
Description

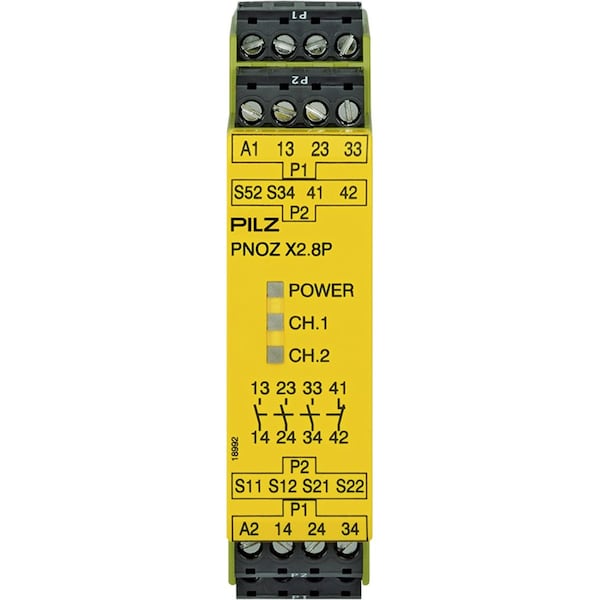

Industrial safety relay designed for emergency stop (E-STOP) and safety gate monitoring applications. It ensures reliable machine shutdown in hazardous conditions by monitoring safety circuits and detecting faults like contact short circuits. Specifications: -Type: Safety Relay (Standalone) -Series: PNOZ X2.8P -Supply Voltage: 24V AC/DC -Inputs: 2-channel safety input -Safety Outputs: 3 N/O (Normally Open) -Auxiliary Outputs: 1 N/C (Normally Closed) -Contact Rating: 6 A (AC/DC1) -Switching Voltage: Up to 240V AC / 24V DC -Start Mode: Automatic / Manual reset selectable -Mounting Type: DIN Rail (22.5 mm width) -Connection Type: Screw Terminal -Housing Material: ABS / PPO (flame retardant UL 94 V0) -Protection Class: IP40 (housing), IP20 (terminals) -Operating Temperature: -35 deg C to +55 deg C -Application: E-STOP, safety gates, light curtain monitoring -Safety Standards: CE, TUV, cULus, UKCA approved -Mechanical Life: Up to 10,000,000 cycles
Restrictions
This item has been restricted from sale in the following states:
CA
