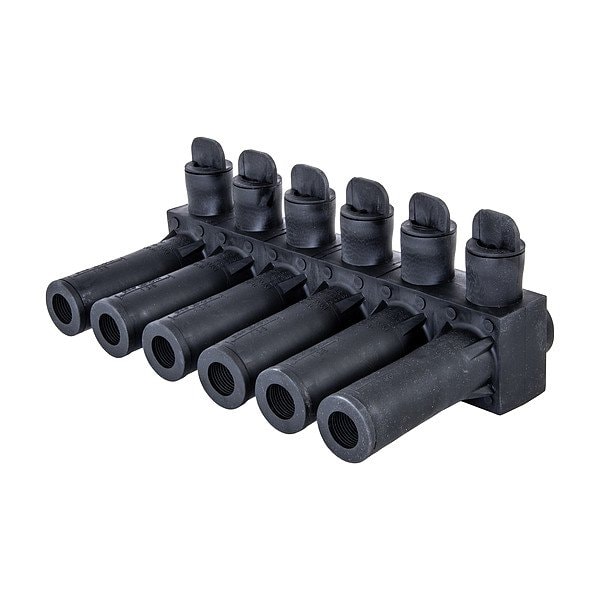

MultitapConnector, Alum, Blk, Hex, 6Port
Mfr # ISPB600-6
Zoro # G216286844
product price:Â
$
94.15
/ea
Key Features
Connector Type
Single-Sided Entry
Number of Ports
6
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Insulation Material
Rubber
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ISPB600-6
- Zoro #
- G216286844
- UPC #
- 662381789396
- Country of Origin
- United States
Dimensions
- Hex Size
- 5/16 in
- For Stranded Copper Wire Size - Maximum
- 600 kcmil
- Overall Width
- 5.43 in
- Wire Rope Length
- 9.94 in
- For Stranded Copper Wire Size - Minimum
- 6 AWG
- Overall Depth
- 3 13/16 in
- Overall Length
- 9.94 in
- Length
- 9.94 in
Details
- Item
- Multitap Connector
- Connector Type
- Single-Sided Entry
- Number of Ports
- 6
- For Conductor Material
- Aluminum, Copper
- Body Material
- Aluminum
- Insulation Material
- Rubber
- Head Style
- Hex
- Color
- Black
- Maximum Operating Temperature
- 194 Degrees F
- Standards
- ANSI C119.4, C119.1
- Direct Burial Rated
- Yes
- Finish
- Rubber
- Minimum Operating Temperature
- -49 Degrees F
- Maximum Voltage
- 600 V
- Current
- 1,215 A
- Special Features
- Pre-Filled with an Oxide Inhibitor Gel to Prevent Corrosion or Contamination
Description
Multitap Connector, Body Material Aluminum, Color Black, Finish Rubber, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Rubber, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 6, UL 94 Flammability Rating Not Applicable, Standards ANSI C119.4, C119.1, Connector Type Single-Sided Entry, Current 1,215 A
