Shop POMONA ELECTRONICS

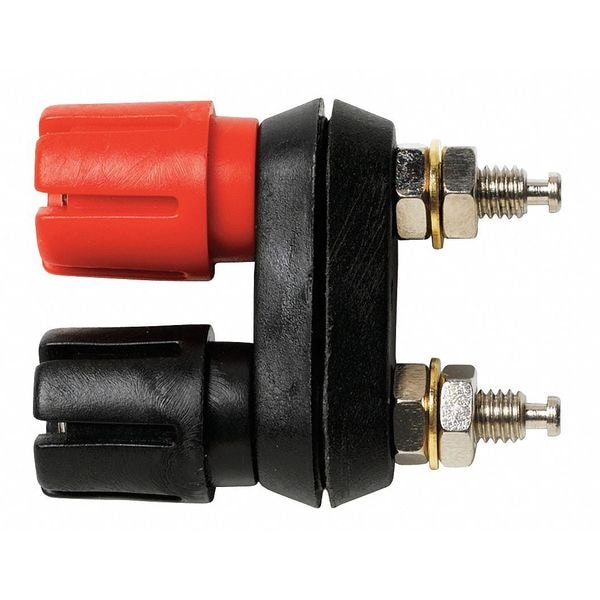

Dual Binding Post, 30VAC/60VDC, Red/Black, PR

  • Mfr # 6883

  • Zoro # G7482964

product price:  $8.25
/pr

Key Features

Length
1.98"
Color
Red/Black
Max Amps
30A
Application
Electronics, Audio
Includes
Mounting Base
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6883
Zoro #
G7482964
UPC #
095969253253
Country of Origin
China

Dimensions

Length
1.98"
Manufacturers Warranty Length
90 days
Wire Size
12 AWG
Contact Diameter
7/8 mm

Details

Item
Double Binding Post
Color
Red/Black
Max Amps
30A
Application
Electronics, Audio
Includes
Mounting Base
Features
5 Way Binding Post with 0.154 in Cross Hole
Hand Held Voltage
30V AC/60V DC
Operating Temp.
Up to 158 Degrees F
Body Material
Brass
Contact Finish
Nickel Plated
Max. Amps
30 A
Color - Test Lead Connector
Black/Red
Item - Test Lead Connector
Double Binding Post
Contact Material
Brass
Max. Amps - Test Lead Connector
30 A
Contact Material - Test Lead Connector
Brass
Insulating Material - Test Lead Connector
Nylon
Hands Free Voltage
300V AC
Contact Finish - Test Lead Connector
Nickel Plated
Insulating Material
Nylon
Body Material - Test Lead Connector
Nylon
Standards
CE
Maximum Operating Temperature
158 Degrees F
Maximum Voltage
500 V
Insulation Material
Nylon
Maximum Current
30 A
Contact Spacing
3/4 in
Body Finish
Nickel Plated
For Wire Gauge - Maximum
12 AWG

Description

Double Binding Post, Contact Finish Nickel Plated, Contact Material Brass, Maximum Current 30 A, Color Black/Red, Body Material Brass, Maximum Voltage 500 V, Length 2 in, Application Audio, Electronics, Contact Spacing 3/4 in, Features 5 Way Binding Post with 0.154 in Cross Hole, Contact Diameter 7/8 mm, Max. Operating Temp. 158 Degrees F, Includes Mounting Base, Wire Size 12 AWG, Standards CE, Maximum Temperature Measurement Not Applicable, Minimum Temperature Measurement Not Applicable
