Prince

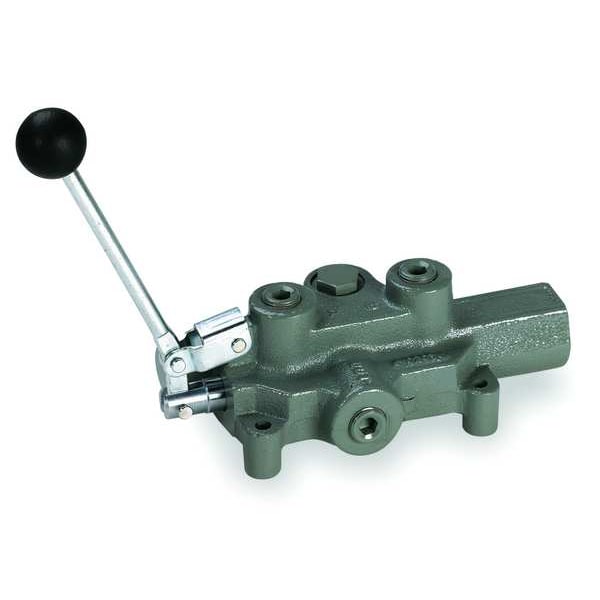

Valve, 4 Way, 1/2 In NPT

product price: $210.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Type - Hydraulic Valves Hydraulic Directional Control Valve
  • Number of Spools - Hydraulic Valves 1
  • Valve Ways and Positions 4-Way/3-Position
  • Spool Action Spring Center to Neutral
  • Max. Flow - Hydraulic Valves 16 gpm
See all product information

Product Information

Dimensions

Inlet Port Size - Hydraulic Valves 1/2 in NPT
Outlet Port Size - Hydraulic Valves 1/2 in NPT
Width (In.) 3 7/8 in
Length (In.) 8 in
Height (In.) 3 3/8 in
Work Port Size - Hydraulic Valves 1/2 in NPT
Overall Length 12 in
Overall Height 8.25 in
Overall Width 4.25 in
Work Connection Size 1/2 in
Pressure Connection Size 1/2 in

Details

Valve Type - Hydraulic Valves Hydraulic Directional Control Valve
Number of Spools - Hydraulic Valves 1
Valve Ways and Positions 4-Way/3-Position
Spool Action Spring Center to Neutral
Max. Flow - Hydraulic Valves 16 gpm
Max. Pressure - Hydraulic Valves 3,000 psi
Relief Valve Range (PSI) 1000 to 2750
Spools 1
Max. Pressure (PSI) 3000
Inlet/Outlet NPT (In.) 1/2
Center Tandem
Flow Capacity (GPM) 16
Item Hydraulic Directional Valve
NPT Port (In.) 1/2
For Use With Double Acting Cylinders
Adjustable PSI Range 1000 to 2750
Factory Preset Relief Valve Setting (PSI) 1500 psi @ 12 GPM
Type Monoblock
Ways 4
Body Material Cast Iron
Valve Type Check
Series RD2500
Number of Positions Three Positions
Standards ISO 4406 19/17/14
Number of Ways Four-Way
Flow Rate - Maximum 12 gpm
Relief Valve Pressure Setting - Minimum 1,000 psi
Operating Temperature - Maximum 180 Degrees F
Handle Type Lever
Valve Control Directional Control
Pressure Connection Type NPT
Pressure Setting - Maximum 3,000 psi
Port Connections Inlet, Outlet, Work
Work Connection Type NPT
Center Position Tandem Center
Relief Valve Pressure Setting - Maximum 1,500 psi
Adjustment Method Lever
Pressure Setting - Minimum 1,000 psi
Actuation Mechanism Manual
Supply Pressure - Maximum 3,000 psi
Number of Spools 1

Description

Hydraulic Directional Valve, Flow Rate - Maximum 12 gpm, Number of Positions Three Positions, Number of Ways Four-Way, Pressure Setting - Maximum 3,000 psi, Spool Action Spring Center to Neutral, Port Connections Inlet, Outlet, Work, Center Position Tandem Center, Series RD2500, Number of Spools 1, Pressure Setting - Minimum 1,000 psi, Actuation Mechanism Manual, Relief Valve Pressure Setting - Maximum 1,500 psi, Work Connection Type NPT, Pressure Connection Type NPT
