Procon

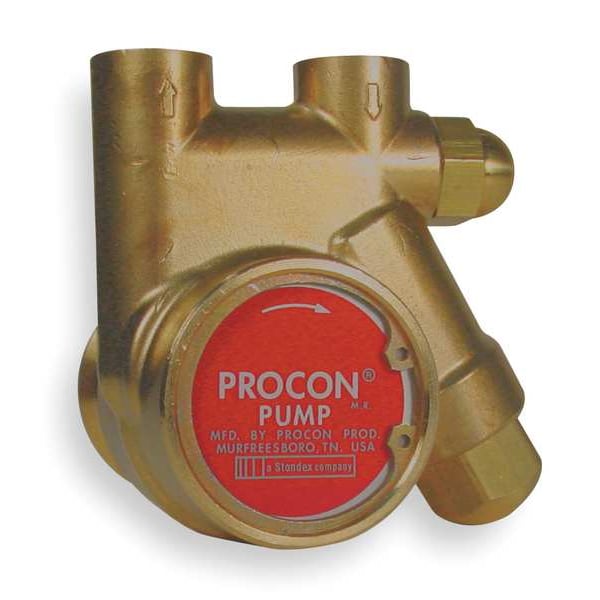

Pump, Rotary Vane, Brass

product price: $152.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • External Relief Not Required
  • GPH of Water @ 150 PSI 139 gph
  • Filter Strainer 100 Mesh
  • HP @ 150 PSI 1/2 hp
  • Min. Flow Rate (GPH) 135 gph
See all product information

Product Information

Dimensions

Overall Length 3.6 in
Overall Height 3.4 in
Overall Width 3.9 in
Media Intake Connection Size 3/8 in
Shaft Outer Diameter 1/2 in
Discharge Connection Size 3/8 in

Details

Item Rotary Vane Pump
External Relief Not Required
GPH of Water @ 150 PSI 139 gph
Filter Strainer 100 Mesh
HP @ 150 PSI 1/2 hp
Min. Flow Rate (GPH) 135 gph
GPH of Water @ 100 PSI 141 gph
Max. Temp. (F) 158 Degrees F
GPH 140 gph
GPH of Water @ 250 PSI 135 gph
Max. Flow (GPH) 154 gph
Relief Pressure Max. (PSI) 250 psi
Mounting Carbonator Clamp Style
HP @ 200 PSI 3/4 hp
Shaft 303 Stainless Steel
Relief Valve PSI Setting 200 psi
HP @ 100 PSI 1/3 hp
GPH of Water @ 50 PSI 143 gph
HP @ 50 PSI 1/4 hp
HP @ 250 PSI 3/4 hp
GPH of Water @ 200 PSI 137 gph
Body Material Brass
Max. Pressure (PSI) 250 psi
By-Pass Yes
Inlet/Outlet NPTF (In.) 3/8 in
Built-In Relief Valve
Includes Relief Valve
Vane Material Carbon
Shaft Material 303 Stainless Steel
Standards NSF, RoHS
Seal Material Carbon, Ceramic
Viscosity - Maximum 100 cps
Flow Rate @ 50 psi 143 gph
Includes Filter Yes
Operating Temperature - Maximum 160 Degrees F
Operating Temperature - Minimum -4 Degrees F
Operating Pressure - Maximum 150 psi
Media Intake Connection Type FNPT
Flow Rate @ 250 psi 135 gph
For Media Type No
Flow Rate - Maximum 140 gph
Feet of Head - Maximum 6 ft of head
Flow Rate @ 200 psi 137 gph
Flow Rate - Minimum 135 gph
Discharge Connection Type NPT
Filter Rating - Maximum 120 micron
Compatible Motor Frame 48Y NEMA
NSF 169 Listed Yes
Flow Rate @ 150 psi 139 gph
Flow Rate @ 100 psi 141 gph

Description

Rotary Vane Pump, Flow Rate - Maximum 140 gph, Feet of Head - Maximum 6 ft of head, Mounting Type Carbonator Clamp, Compatible Motor Frame 48Y NEMA, Media Intake Connection Size 3/8 in, Media Intake Connection Type FNPT, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Vane Material Carbon, Includes Filter Yes, Filter Rating - Maximum 120 micron, For Media Type No, NSF 169 Listed Yes, Operating Pressure - Maximum 150 psi, Operating Temperature - Minimum -4 Degrees F

Restrictions

  • WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
