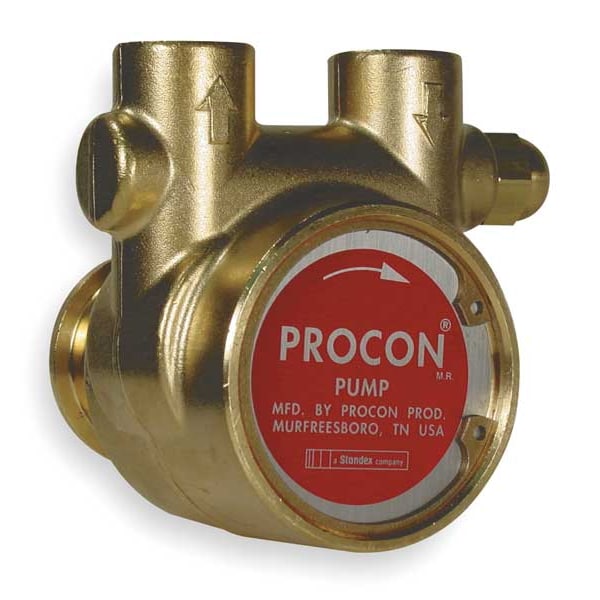

Procon Pump, Rotary Vane, Brass 114B240F11BA 250 - main

Pump, Rotary Vane, Brass

  • Mfr # 114B240F11BA 250

  • Zoro # G2491596

product price: $173.99
/ea
Free Shipping & Returns

Key Features

Min. Flow Rate (GPH)
228 gph
HP @ 50 PSI
1/4 hp
GPH of Water @ 50 PSI
243 gph
Max. Temp. (F)
158 Degrees F
HP @ 100 PSI
1/2 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
114B240F11BA 250
Zoro #
G2491596
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
3.8 in
Overall Length
4.1 in
Overall Width
3.8 in
Media Intake Connection Size
1/2 in
Discharge Connection Size
1/2 in
Shaft Outer Diameter
1/2 in

Details

Item
Rotary Vane Pump
Min. Flow Rate (GPH)
228 gph
HP @ 50 PSI
1/4 hp
GPH of Water @ 50 PSI
243 gph
Max. Temp. (F)
158 Degrees F
HP @ 100 PSI
1/2 hp
GPH of Water @ 150 PSI
236 gph
Max. Flow (GPH)
260 gph
GPH of Water @ 100 PSI
240 gph
Mounting
Carbonator Clamp Style
GPH of Water @ 250 PSI
228 gph
GPH
240 gph
Built-In
Relief Valve
Max. Pressure (PSI)
250 psi
HP @ 150 PSI
3/4 hp
Relief Valve PSI Setting
200 psi
Body Material
Brass
External Relief
Not Required
HP @ 250 PSI
1 hp
Relief Pressure Max. (PSI)
250 psi
Shaft
303 Stainless Steel
Inlet/Outlet NPTF (In.)
1/2 in
GPH of Water @ 200 PSI
232 gph
HP @ 200 PSI
3/4 hp
By-Pass
Yes
Shaft Material
303 Stainless Steel
Vane Material
Carbon
Includes
Relief Valve
Standards
NSF, RoHS
Flow Rate @ 100 psi
240 gph
Flow Rate @ 250 psi
228 gph
NSF 169 Listed
Yes
Compatible Motor Frame
48Y NEMA
For Media Type
No
Flow Rate - Minimum
228 gph
Media Intake Connection Type
FNPT
Operating Pressure - Maximum
150 psi
Includes Filter
No
Feet of Head - Maximum
6 ft of head
Discharge Connection Type
NPT
Flow Rate @ 50 psi
243 gph
Operating Temperature - Minimum
-4 Degrees F
Flow Rate @ 200 psi
232 gph
Flow Rate @ 150 psi
236 gph
Viscosity - Maximum
100 cps
Flow Rate - Maximum
240 gph
Seal Material
Carbon, Ceramic
Operating Temperature - Maximum
160 Degrees F

Description

Rotary Vane Pump, Flow Rate - Maximum 240 gph, Feet of Head - Maximum 6 ft of head, Mounting Type Carbonator Clamp, Compatible Motor Frame 48Y NEMA, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT, Discharge Connection Size 1/2 in, Discharge Connection Type NPT, Vane Material Carbon, Includes Filter No, Filter Rating - Maximum Not Applicable, For Media Type No, NSF 169 Listed Yes, Operating Pressure - Maximum 150 psi, Operating Temperature - Minimum -4 Degrees F
