  11. Cord Connector, 1-51/64" L, 1" Conduit

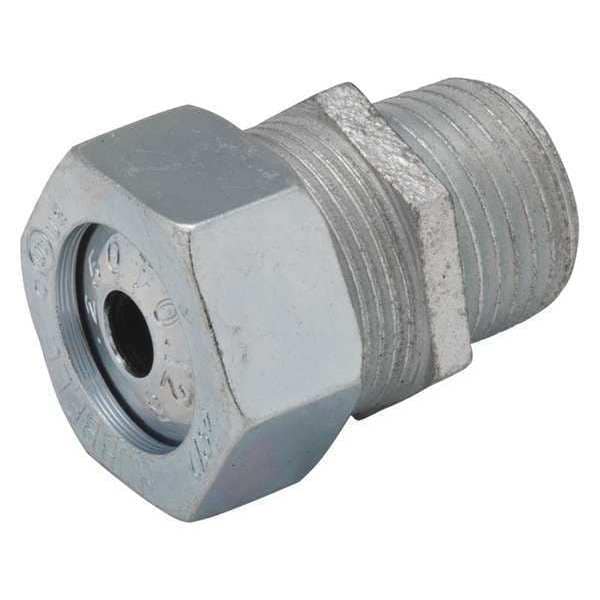

Raco Cord Connector, 1-51/64" L, 1" Conduit 3704-1 - main

Cord Connector, 1-51/64" L, 1" Conduit

  • Mfr # 3704-1

  • Zoro # G5490871

product price: $10.49
/ea

Key Features

Hub Size
1 in MNPT
Material
Steel
Color
Silver
Length
1-51/64"
Standards
cULus
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3704-1
Zoro #
G5490871
UPC #
050169370414
Country of Origin
China

Dimensions

Hub Size
1 in MNPT
Length
1-51/64"
Length - Box to End of Connector
1 3/16 in
Conduit Size
1"
Cord Dia. Range
0.60 in to 0.70 in
Length - External Strain Relief
No External Strain Relief
Compatible Conduit Trade Size
4 in
Form Size
F4
Thread Size
4 in
Each - Width
1.703 in
Size
1.797 in x 1.703 in x 1.703 in
Dimensions
1.797 in x 1.703 in x 1.703 in
Height
1.703 in
Trade Size
1 in
Width
1.703 in

Details

Item
Enhanced Rating Cord Connector
Material
Steel
Color
Silver
Standards
cULus
Box Connection
1 in MNPT
Insulated
No
Connector Type
Straight
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Gland Color Code
Imprinted
Material - External Strain Relief
No External Strain Relief
Material - Cord Connector
Steel
Number of Cords
1
Style - Connector
Straight
Item - Cord Connector
Enhanced Rating Cord Connector
Body Color - Cord Connector
Silver
Strain Relief Type
No External Strain Relief
Collar Material
Steel
Liquid Tight
Yes
Grommet Color Code
Imprinted
Body Material
Steel
Body Color
Silver
Thread Type
NPT Thread
Grommet Material
Neoprene
For Minimum Cable OD
0.6 in
For Maximum Cable OD
0.7 in
Connection Orientation
Straight
Cable Range
.600 - .700 in
Environmental Conditions
Wet Location
Hazardous Rating(s)
Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2
Standard
cULus Listed
Fitting Type
Connectors
Conduit Type
Liquidtight
Product Type
Commercial Fittings
Certified Listed
cULus Listed
Features
All steel/malleable construction provides mechanical strength; Unique Neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal; Washers have size range imprinted for identification - eliminates misidentifying inventory; Use RACO locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel; All metallic components are zinc electroplated for corrosion protection; UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation; 3/8 in. to 1 in. Steel, 1-1/4 in. to 1-1/2 in. Malleable Iron bodies and nuts; Additional sizes available

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.60 in to 0.70 in, Box Connection 1 in MNPT, Material - Cord Connector Steel, External Strain Relief Material No External Strain Relief, Gland Color Code Imprinted, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, Length - Box to End of Connector 1 3/16 in, Insulated No, Standards cULus
