Raychem

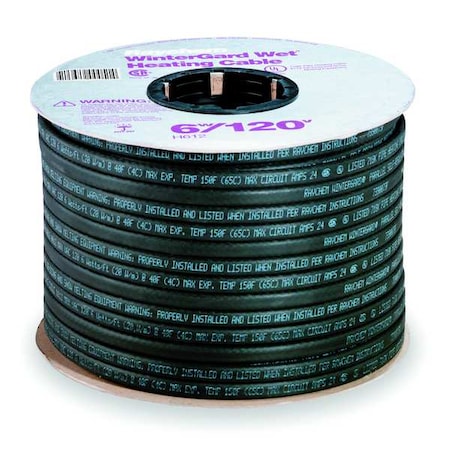

Electric Heating Cable, 120VAC, 250 ft Length

Raychem Electric Heating Cable, 120VAC, 250 ft Length 734921-000
Hover or click to zoom Tap to zoom
$1,309.68
  • Promotion Restriction: Not eligible for promotion
  • Item: Electric Heating Cable
  • Mounting Location: Wet or Dry
See full product details
This item ships free.
Total: $1,309.68

Raychem #734921-000 Specifications

  • Promotion Restriction: Not eligible for promotion
  • Item: Electric Heating Cable
  • Mounting Location: Wet or Dry
  • Cable Length: 250 ft
  • Max. Circuit Length: 200 ft
  • Heater Voltage: 120VAC
  • For Use With: H900, H903, H908, H910, H912, H913, H914, H915, Optional Plug 4DC48
  • Standards: CCSA US
  • Includes: Cable Only
  • Amps per Foot @ 40F: 0.05 A
  • Watts per Foot @ 40F: 6 W
  • Features: Self Regulating, Automatically Adjust Heat Output
  • Amps per Cable @ 40F: 0.05 A
  • Number of Conductors: 2
  • Watts per Cable @ 40F: 6 W
  • Voltage: 120V AC
  • Phase: 1
  • Cable Cover Material: Rubberized Polymer
  • NEMA Plug Configuration: Hardwired
  • Color: Black
  • For Use Outdoors: Indoor/Outdoor
  • Wattage Output: 6 W
  • Cable Type: Self-Regulating
  • Overall Width: 7/16 in
  • Cable Material: Conductive Carbon
  • Frequency: 50 Hz
  • Min. Operating Temp.: -40 Degrees F
  • Max. Operating Temp.: 150 Degrees F
  • Product Type: Electric Heating Cable
  • Country of Origin (subject to change): United States

Description

Electric Heating Cable, Cable Type Self-Regulating, Cable Length 250 ft, Indoor/Outdoor, NEMA Plug Configuration Hardwired, 6 W Watts per Foot @ 40F, Voltage 120V AC, Includes Cable Only, 6 W Watts per Cable @ 40F, 0.05 A Amps per Cable @ 40F, 0.05 A Amps per Foot @ 40F, Cable Cover Material Rubberized Polymer, Cable Material Conductive Carbon, Frequency 50 Hz, Max. Circuit Length 200 ft, Max. Operating Temp. 150 Degrees F, Min. Operating Temp. -40 Degrees F, Number of Conductors 2
