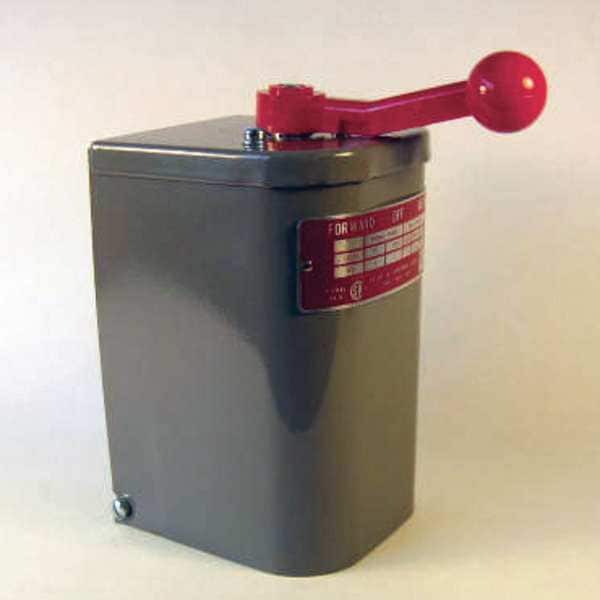

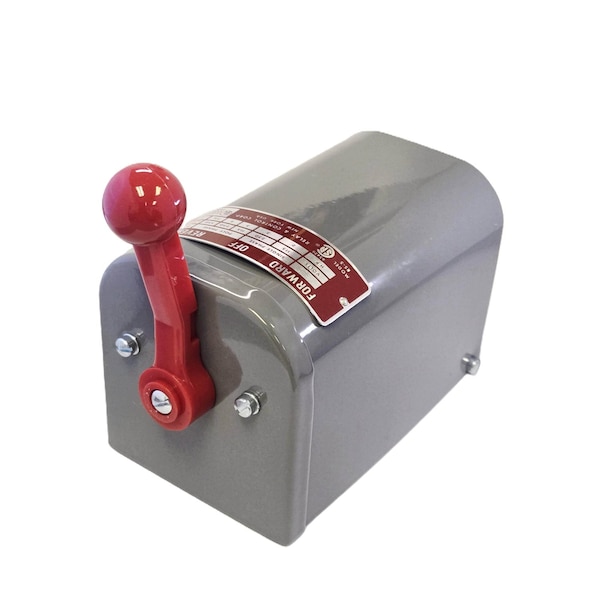

Drum Switch, Plastic, 3 hp
Mfr # RS-5
Zoro # G0543641
product price:Â
$
315.99
/ea
Free Shipping & Returns
Key Features
Number of Poles
3
Handle Material
Plastic
Standards
CSA Certified, UL
Phase
Three
Mounting Style
Surface
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- RS-5
- Zoro #
- G0543641
- UPC #
- -
- Country of Origin
- United States
- Item
- Drum Switch
- Number of Poles
- 3
- Handle Material
- Plastic
- Standards
- CSA Certified, UL
- Phase
- Three
- Mounting Style
- Surface
- Maximum Voltage Rating
- 550V AC
- NEMA Enclosure Rating
- 1
- Series
- RS
- Horsepower @ Three Phase - 208V AC
- 5 hp
- Horsepower @ Single Phase - 120V AC
- 2 hp
- Horsepower @ Three Phase - 240V AC
- 7 1/2 hp
- NEMA Enclosure Material
- Steel
- Horsepower @ Three Phase - 480V AC
- 7 1/2 hp
- Reversing Capability
- Reversing
- Contact Material
- Copper
- Horsepower @ Single Phase - 240V AC
- 3 hp
- Horsepower @ Three Phase - 600V AC
- Not Rated
- Switch Action
- Maintained
- Resistance Properties
- Corrosion Resistant
- Horsepower @ 115V DC
- 2 hp
- Horsepower @ 230V DC
- 2 hp
Description
Drum Switch, Switch Action Maintained, Phase Three, Reversing Capability Reversing, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 7 1/2 hp, Mounting Style Surface, Maximum Voltage Rating 550V AC, Horsepower @ Single Phase - 120V AC 2 hp, NEMA Enclosure Rating 1, Number of Poles 2, Horsepower @ Single Phase - 240V AC 3 hp, Horsepower @ Three Phase - 208V AC 5 hp, Horsepower @ Three Phase - 600V AC Not Rated, Standards CSA, UL, Contact Material Copper
