Shop REMINGTON INDUSTRIES

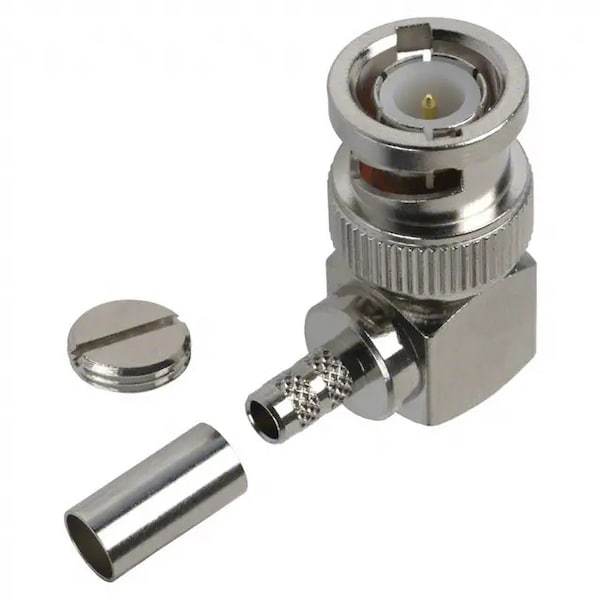

BNC Male RA Coax Connector Components, Bayonet 90 Degree Plug for RG-55, RG-142, RG-223, RG-400 Cbls

  • Mfr # 112526

  • Zoro # G801908892

product price:  $44.89
/ea

Key Features

Impedance
50 Ω
Connector Type
BNC (Bayonet) Coupling Type
Contact Material
Gold-plated brass
Operating Frequency
4 GHz Maximum
Connection to Cable
Solder & hex crimp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
112526
Zoro #
G801908892
UPC #
-
Country of Origin
United States

Details

Impedance
50 Ω
Connector Type
BNC (Bayonet) Coupling Type
Contact Material
Gold-plated brass
Operating Frequency
4 GHz Maximum
Connection to Cable
Solder & hex crimp
Mating Cycles
500
Voltage Rating
500 V Maximum
Body Material
Nickel-plated brass
Insulator Material
Polyoxymethylene (POM/Acetal/Delrin)
Gender/Style
Male (Plug), Right angle (90°)
Coupling Type
Bayonet style, 2-slot/180°
Temperature Rating
-40°C (-40°F) to 85°C (185°F)
Compatible Cable Types
RG-55, RG-142, RG-223, & RG-400 coaxial cables Connection to Cable

Description

This BNC coaxial RF connector is a bayonet-coupling right-angle plug that is designed to attach to a variety of coaxial cables via soldering & crimping. This type of connector is commonly utilized in high-frequency signal transmission operations including telecommunications, television/video applications, network (LAN/WAN) connections, test equipment, and ham/CB/other radio setups. The connector must be assembled per the Amphenol 112526 Customer Drawing. Alternatively, Remington Industries offers completed coax cable assemblies with BNC connectors attached to several types of cables for your convenience.
