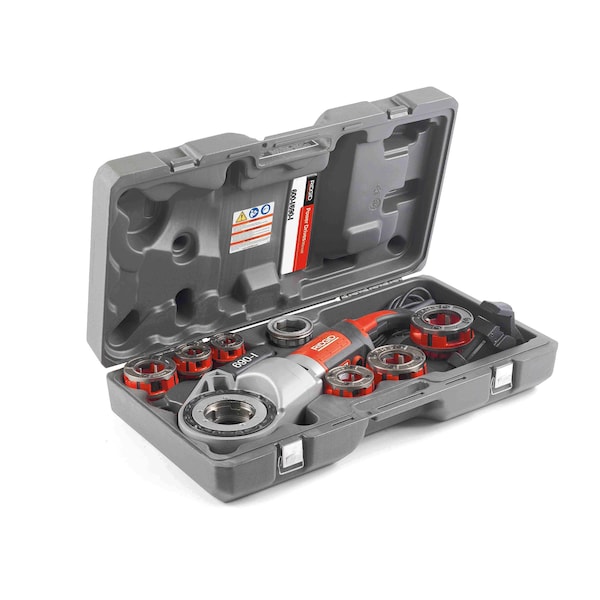

Pipe Threading Machine, 1/2 to 2 In

  • Mfr # 44923

  • Zoro # G7551643


product price: $3,162.99
/ea
Free Shipping & Returns

Key Features

Overall Length
24.1 in
Minimum Compatible Pipe Size
1/2 in
Maximum Compatible Pipe Size
2 in
Voltage
115 V
Includes
1 1/2 in NPT 11R Die Head, 2 in NPT 11R Die Head, 1/2 in NPT 11R Die Head, 3/4 in NPT 11R Die Head, 1 in NPT 11R Die Head, 1 1/4 in NPT 11R Die Head, Ratcheting Ring, Support Arm, Carrying Case
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
44923
Zoro #
G7551643
UPC #
095691449238
Country of Origin
China

Dimensions

Overall Length
24.1 in
Minimum Compatible Pipe Size
1/2 in
Maximum Compatible Pipe Size
2 in
Overall Width
4.75 in
Bolt Size
No Bolt
Rod Size
No Rod
Overall Height
8 in
Die Head Sizes
1/2 in to 2 in
Dedupe to Minimum Compatible Pipe Size and Maximum Compatible Pipe Size
1/2 in to 2 in
Size
24.1" L x 4.75" W x 8" H

Details

Item
Hand-Held Power Drives
Voltage
115 V
Includes
1 1/2 in NPT 11R Die Head, 2 in NPT 11R Die Head, 1/2 in NPT 11R Die Head, 3/4 in NPT 11R Die Head, 1 in NPT 11R Die Head, 1 1/4 in NPT 11R Die Head, Ratcheting Ring, Support Arm, Carrying Case
Features
Dual "V" Jaw Support Arm, Over-Molded Contoured Grip
Tool Series
690-I
Capacity
1/8" - 2"
Characteristics
Comes Equipped with a Full Set of 11-R Die Heads 1/2 in to 2 in , Comes Standard with the 601 Support Arm and Carrying Case
Switch Type
Forward/Reverse Slide Switch
Phase
Single-Phase
Standards
CSA Certified, NRTLC, UL Listed
Free Speed
36 RPM
Number of Speeds
1
Motor Type
1270 Watt, Single Phase, Universal Motor
Kit Contents
Bare Tool
Reversible
Yes
Compatible Die Head Type
11R
Machine Type
Portable Handheld Power Drive
Portability
Portable
Frequency
60 Hz
Power Output
1,270 W
Horsepower
1/2 hp
Number of Die Heads
6
Current
12 A
Power Source
Corded
Through-the-Head Oiling
No
Housing Material
Cast Aluminum, Plastic
Tool Weight
59 lb
Thread Standard of Included Dies
NPT
Body & Handle Material
Durable heavy-duty fiberglass reinforced plastic
Controls
Forward/reverse slide switch, on/off two-step momentary contact

Description

Portable Pipe Threading Machine, Compatible Die Head Type 11R, Maximum Compatible Pipe Size 2 in, Minimum Compatible Pipe Size 1/2 in, Current 12 A, Die Head Sizes 1/2 in to 2 in, Die Head Sizes Included 1/2 in, 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, 2 in, Features Dual In.V In. Jaw Support Arm, Over-Molded Contoured Grip, Free Speed 36 RPM, Frequency 60 Hz, Horsepower 1/2 hp, Housing Material Cast Aluminum, Plastic
