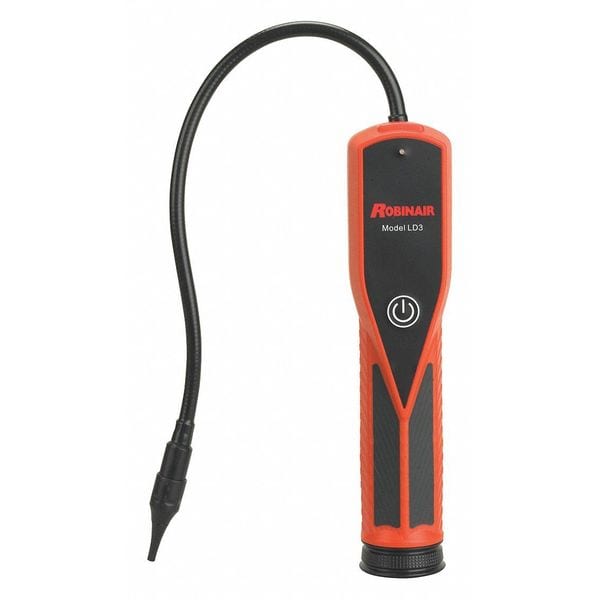

Economy Refrigerant Leak Detector

Mfr # LD3
Zoro # G4549542

310.99

Free Shipping & Returns

Key Features

Includes

(5) Sensor Filters, Leak Test Vial

Lamp

Sensitivity Level

Adjustable

Application

Indoor/Outdoor

Function

Leak Detection

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: LD3
Zoro #: G4549542
UPC #: 637335045989
Country of Origin: United States

Dimensions

Probe Length: 17 in
Overall Length: 17 in
Wire Rope Length: 17 in
Length: 17 in

Details

Item: Refrigerant Leak Detector
Includes: (5) Sensor Filters, Leak Test Vial
Lamp: No
Sensitivity Level: Adjustable
Application: Indoor/Outdoor
Function: Leak Detection
Carton Quantity: 1
Sensitivity per Year: 0.05 oz/yr R-134, 0.025 oz/yr R-22
Number of Batteries: 4
Design: Hand Held
Type: LD3 Economy Refrigerant
Typical Application: Refrigerant Leak Detection
Features: Automatic Calibration and Reset to Ambient, Comfortable Handle Grip, Long Life Stable Sensor, Low Battery Indicator, Three Adjustable Sensitivity Levels, True Mechanical Pump
For Use With: All Halogenated Refrigerants Including R-1234yf and R-134a
Standards: ASHRAE 173-2012, CE Certified, EN 14624:2012, SAE J2791, SAE J2913, UL Listed
Compatible With: All Refrigerants
Product Type: Refrigerant Leak Detector
Calibration: Automatic
Operating Temperature - Minimum: -24 Degrees F
Sensitivity - R410a: 0.05 oz/yr
Sensor Type: Heated Diode
Power Source: Battery
Warranty: 2 yr
Sensor Life: 10 yr
Operating Temperature - Maximum: 125 Degrees F
Sensitivity - R22: 0.025 oz/yr
Mobility: Handheld
Display Type: LED Indicator
Response Time: 0 sec
Operating Humidity - Maximum: 95 %
Number of Sensitivity Levels: 3
Warm-Up Time: 20 sec
Includes Lamp: Lamp Not Included
For Refrigerant Group: CFC, HCFC, HFC, HFO
Includes Batteries: Batteries Included
Battery Type: AA
For Refrigerant Type: R-1234YF, R-134A
Includes Low Battery Warning: Low Battery Warning Included
Indication Method: Audio
Battery Recharge: Not Rechargeable
Tool Type: Refrigerant Leak Detector

Description

Refrigerant Leak Detector, Tool Type Refrigerant Leak Detector, Application Indoor/Outdoor, For Use With All Halogenated Refrigerants Including R-1234yf and R-134a, Overall Length 17 in, Includes (5) Sensor Filters, Leak Test Vial

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
