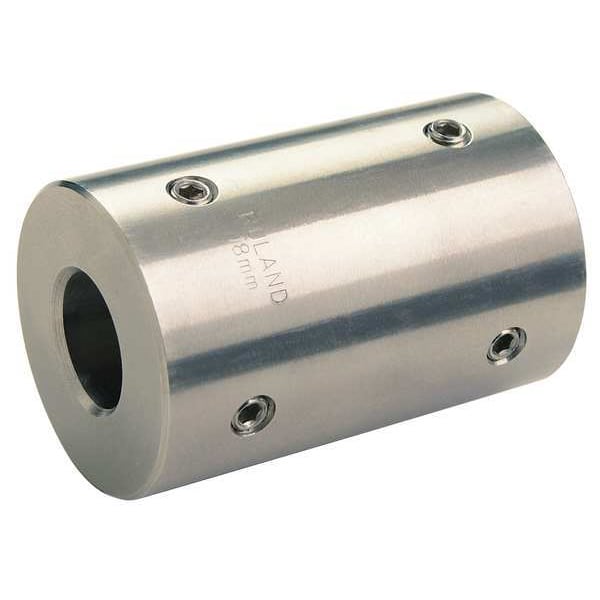

Rigid Shaft Coupling, Set Screw, 30mm
Mfr # MSCX-30-30-SS
Zoro # G8383882
product price: $151.99
/ea
Free Shipping & Returns
Key Features
Shaft Locking Type - Couplings
1 Piece Set Screw
System of Measurement
Metric
Material - Couplings
303 Stainless Steel
Outside Dia.
53 mm
Overall Length
83 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MSCX-30-30-SS
Zoro #
G8383882
UPC #
634529076835
Country of Origin
United States
Dimensions
Bore Dia.
30 mm
Outside Dia.
53 mm
Overall Length
83 mm
Screw Size (mm)
M8
Screw Size
M8
Minimum Bore Diameter
30 mm
Bore Diameter 1
30 mm
Clearance Diameter
53 mm
Different Bore Sizes
No
Bore Diameter 2
30 mm
Maximum Bore Diameter
30 mm
Coupling Outside Diameter
53 mm
Screw Thread Size
M8
Description
Rigid Shaft Coupling, Bore Diameter 1 30 mm, Bore Diameter 2 30 mm, Bore Type Round, Clearance Diameter 53 mm, Coupling Construction One-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 53 mm, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 30 mm, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 30 mm, Maximum Speed 4,000 RPM, Maximum Torque 150 N-m, Overall Length 83 mm
