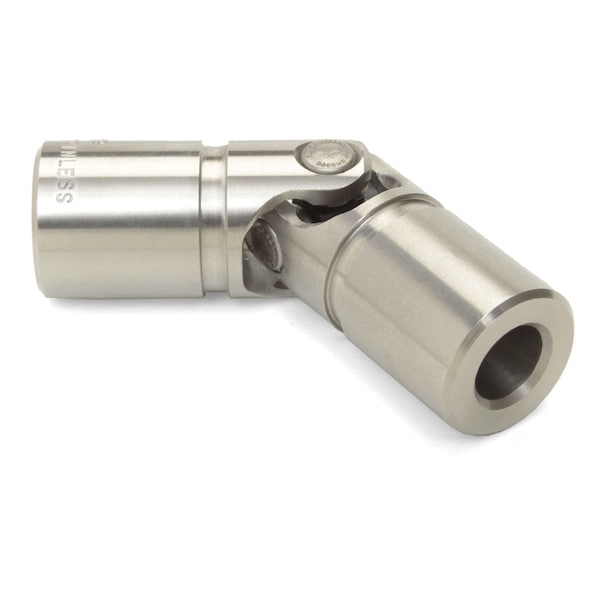

Single U-Joint, 1" x 1" Bores, 1.995" OD, Stainless
Mfr # USC32-16-16-SS
Zoro # G200674039
product price:
$
508.99
/ea
Free Shipping & Returns
Key Features
Type
Single, Needle Bearing
Outside Dia.
1.995 in
Bore
1.0000 in x 1.0000 in
Material
303 Stainless Steel
Lubrication
LUBRIPLATE No. 1200-2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- USC32-16-16-SS
- Zoro #
- G200674039
- UPC #
- 63452929035
- Country of Origin
- United States
Dimensions
- Outside Dia.
- 1.995 in
- Length
- 5.500 in
- Hub Depth
- 1.700 in
- Yoke Length (LY)
- 2.750 in
Details
- Type
- Single, Needle Bearing
- Bore
- 1.0000 in x 1.0000 in
- Material
- 303 Stainless Steel
- Lubrication
- LUBRIPLATE No. 1200-2
- SAE or Metric
- Inch
- Weight
- 3.08 lbs
- Style
- Round Bore
- B1 Shaft Penetration
- 1.700 in
- Bore Tolerance
- +0.0010 in / -0.0000 in,conflict_minerals
- Matching Boot
- UBOOT32/51-NI-KIT
- Max Operating Angle
- 45°
- B2 Shaft Penetration
- 1.700 in
Description
This Ruland single needle bearing universal joint has 1.0000" x 1.0000" bores, a 1.995" outer diameter, and a 5.500" length. It is designed for continuously rotating applictions where improved accuracy, service life, and speed are required. The use of needle roller bearings reduces friction allowing for minimal backlash while maintaining high misalignment capabilities of up to 45°, which is a significant improvement over commodity style needle bearing universal joints. This needle bearing universal joint is capable of speeds up to 6,000 RPM with pre-lubricated boots for a long maintenance free life. It is made from stainless steel for corrosion resistance. The user can add a boot to protect the joint from unwanted contaminants and increase service life. This single needle bearing universal joint is manufactured in the USA.
