  11. Cylinder Truck, 2 Cylinder, 400 lb.

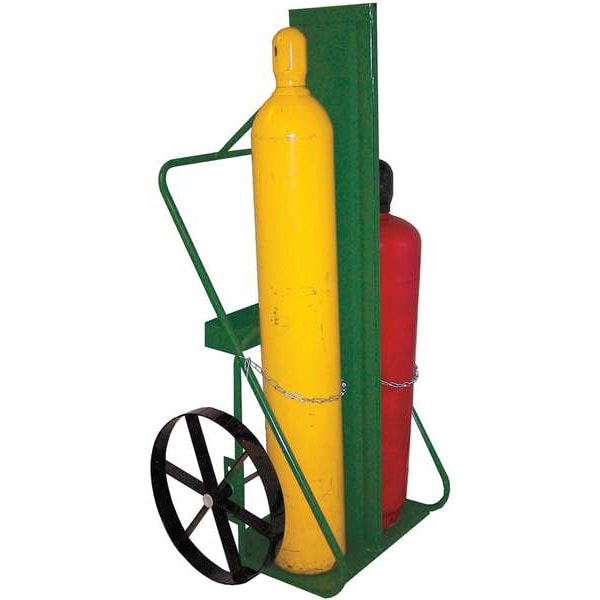

Saftcart Cylinder Truck, 2 Cylinder, 400 lb. 403-20FW - main

Cylinder Truck, 2 Cylinder, 400 lb.

  • Mfr # 403-20FW

  • Zoro # G9809651

product price: $1,016.99
/ea
Item requires special delivery charges. A $115.00 per item surcharge will be applied.

Key Features

Overall Height
62 in
Overall Width
34 in
Material
Steel
Color
Green
Load Capacity
400 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
403-20FW
Zoro #
G9809651
UPC #
810649020907
Country of Origin
United States

Dimensions

Overall Height
62 in
Overall Width
34 in
Wheel Diameter
20 in
Max. Tank Dia. Oxygen
9 1/2 in
Base Plate Dimensions
13 x 24 in
Overall Depth
12 1/2 in
Tool Tray Height
31 in
Max. Tank Dia. Acetylene
9 1/2 in
Wheel Width
3 in
Tool Tray Width
23 7/8 in
Width
33"
Height
62 in
Handle Height
46 in
Axle Dia.
3/4 in
Axle-Mounted Wheel Dia.
20 in
Nose Plate Width
24 in
Nose Plate Thickness
3/32 in
Axle-Mounted Wheel Width
2 1/2 in
For Maximum Container Diameter
12 1/2 in
Firewall Thickness
1 in
Overall Height - Cylinder Lowered
62 in
Nose Plate Depth
13 in
Overall Height - Cylinder Raised
62 in
Securing Mechanism Height
30 in
Overall HxWxD
62 in x 34 in x 12 1/2 in
Deck Height
1/2 in
For Maximum Cylinder Diameter
12 1/2 in
Nose Plate WxD
13 in x 24 in

Details

Material
Steel
Color
Green
Load Capacity
400 lb
Item
Firewall Welding Cylinder Hand Truck
Wheel Type
Steel
Handle Type
Continuous Frame Flow-Back
Assembled
Yes
Finish
Powder Coated
Cylinder Capacity
2
Includes
Chain to Secure Cylinder, Firewall, Toolbox
Hand Truck Handle Type
Continuous Frame Flow-Back
Wheel Material
Steel
Standards
OSHA 1910.253
Frame Type
Rounded Back
Cylinder Orientation
Side by Side
Frame Material
Steel
Nose Plate Type
Solid Straight
Caster/Wheel Configuration
(2) Axle-Mounted
Hub Position
Offset
Includes Lever Pushoff
Without Lever Pushoff
Axle-Mounted Wheel Bearings
Plain
Includes Stair Climber
Without Stair Climber
Weight
119 lb
Caster/Wheel Mounting Location
2-Wheel
Includes Lift Ring
Without Lift Ring
Axle-Mounted Wheel Type
Flat-Free
Frame Finish
Powder Coated
Includes Foot Assist
Without Foot Assist
Compatible with Product Type
Welding Cylinders and Torches
Firewall Rating
1-hour
Securing Mechanism
Chain
Nose Plate Profile
Standard
For Surface Type
Concrete, Grass, Wood
Includes Firewall
Yes
Brake Type
No Caster Brake
Non-Marking Axle-Mounted Wheels
Yes
Nose Plate Material
Steel
Axle-Mounted Wheel/Tread Material
Steel
Type
Standard

Description

2, Overall Height 62 in, Overall Width 34 in, Overall Depth 12 1/2 in, Load Capacity 400 lb, Securing Mechanism Chain, Caster/Wheel Configuration (2) Axle-Mounted, Axle-Mounted Wheel Type Flat-Free, Axle-Mounted Wheel/Tread Material Steel, Axle-Mounted Wheel Dia. 20 in, Handle Type Continuous Frame Flow-Back, Includes Firewall Yes, Includes Foot Assist Without Foot Assist, Includes Lever Pushoff Without Lever Pushoff, Includes Lift Ring Without Lift Ring, Frame Type Rounded Back
