Cylinder Truck, 2 Cylinder, 400 lb.

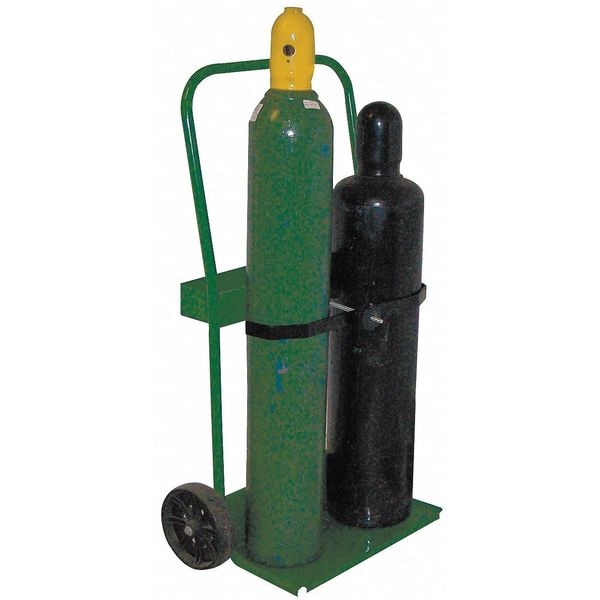

Saftcart Cylinder Truck, 2 Cylinder, 400 lb. 822-10
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$171.29
  • Item: Welding Cylinder Hand Truck
  • Cylinder Capacity: 2
  • Load Capacity: 400 lb
See full product details
This item ships free.
Total: $171.29

Saftcart #822-10 Specifications

  • Item: Welding Cylinder Hand Truck
  • Cylinder Capacity: 2
  • Load Capacity: 400 lb
  • Overall Height: 45 in
  • Overall Width: 27 in
  • Base Plate Dimensions: 10 x 19 in
  • Material: Steel
  • Hand Truck Handle Type: Continuous Frame Flow-Back
  • Max. Tank Dia. Oxygen: 7 3/4 in
  • Max. Tank Dia. Acetylene: 6 1/2 in
  • Wheel Type: Polyolefin
  • Wheel Diameter: 10 in
  • Finish: Powder Coated
  • Tool Tray Height: 25 1/2 in
  • Includes: Steel Band to Cylinder, Toolbox
  • Wheel Material: Polyolefin
  • Wheel Width: 2 3/4 in
  • Tool Tray Width: 19 in
  • Overall Depth: 6 1/2 in
  • Color: Green
  • Standards: 29 CFR 1926.350(a)(10)
  • Handle Height: 45 in
  • Frame Finish: Powder Coated
  • For Maximum Container Diameter: 9 1/2 in
  • Nose Plate Type: Solid Straight
  • Features: Designed to Work on Rougher Terrain
  • Compatible with Product Type: Welding Cylinders and Torches
  • Axle-Mounted Wheel/Tread Material: Rubber
  • Caster/Wheel Configuration: (2) Axle-Mounted
  • Nose Plate Material: Steel
  • Axle-Mounted Wheel Width: 2 3/4 in
  • Cylinder Orientation: Side by Side
  • Caster/Wheel Mounting Location: 2-Wheel
  • Assembled: Yes
  • Nose Plate Thickness: 1/16 in
  • Includes Lever Pushoff: Without Lever Pushoff
  • Securing Mechanism Height: 24 in
  • Axle-Mounted Wheel Type: Tread on Core
  • Deck Height: 1/2 in
  • Frame Type: Rounded Back
  • Non-Marking Axle-Mounted Wheels: Yes
  • Axle-Mounted Wheel Dia.: 10 in
  • Axle Dia.: 5/8 in
  • Brake Type: No Caster Brake
  • Overall HxWxD: 45 in x 27 in x 6 1/2 in
  • Handle Type: Continuous Frame Flow-Back
  • Nose Plate Profile: Standard
  • Includes Stair Climber: Without Stair Climber
  • Includes Firewall: No
  • Nose Plate Depth: 10 in
  • Includes Foot Assist: Without Foot Assist
  • Overall Height - Cylinder Raised: 45 in
  • Frame Material: Steel
  • Weight: 34 lb
  • For Surface Type: Concrete, Grass, Wood
  • Overall Height - Cylinder Lowered: 45 in
  • Axle-Mounted Wheel Bearings: Plain
  • Includes Lift Ring: Without Lift Ring
  • Nose Plate Width: 19 in
  • Hub Position: Offset
  • Securing Mechanism: Perma Clamp
  • Nose Plate WxD: 10 in x 19 in
  • For Maximum Cylinder Diameter: 9 1/2 in
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

2, Overall Height 45 in, Overall Width 27 in, Overall Depth 6 1/2 in, Load Capacity 400 lb, Securing Mechanism Perma Clamp, Caster/Wheel Configuration (2) Axle-Mounted, Axle-Mounted Wheel Type Tread on Core, Axle-Mounted Wheel/Tread Material Rubber, Axle-Mounted Wheel Dia. 10 in, Handle Type Continuous Frame Flow-Back, Includes Firewall No, Includes Foot Assist Without Foot Assist, Includes Lever Pushoff Without Lever Pushoff, Includes Lift Ring Without Lift Ring, Frame Type Rounded Back
