Saftcart

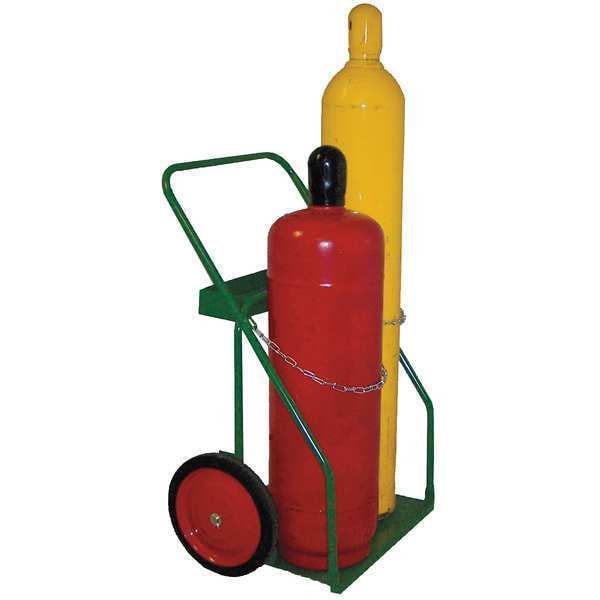

Welding Cylinder Truck, 2 Cyl, 400 lb.

Saftcart Welding Cylinder Truck, 2 Cyl, 400 lb. 870-14
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$267.29
  • Item: Welding Cylinder Hand Truck
  • Cylinder Capacity: 2
  • Load Capacity: 400 lb
See full product details
This item ships free.
Total: $267.29

Saftcart #870-14 Specifications

  • Item: Welding Cylinder Hand Truck
  • Cylinder Capacity: 2
  • Load Capacity: 400 lb
  • Overall Height: 44 in
  • Overall Width: 30 in
  • Base Plate Dimensions: 13 x 24 in
  • Material: Steel
  • Hand Truck Handle Type: Continuous Frame Flow-Back
  • Max. Tank Dia. Oxygen: 9 1/2 in
  • Max. Tank Dia. Acetylene: 12 1/2 in
  • Wheel Type: Semi-Pneumatic
  • Wheel Bearings: Ball
  • For Use With: Welding Cylinders and Torches
  • Tool Tray Height: 31 in
  • Finish: Powder Coated
  • Overall Depth: 12 1/2 in
  • Wheel Diameter: 14 in
  • Includes: Steel Band to Cylinder, Toolbox
  • Wheel Width: 1 3/4 in
  • Tool Tray Width: 22 in
  • Handle Height: 44 in
  • Color: Green
  • Standards: 29 CFR 1926.350(a)(10)
  • Nose Plate Material: Steel
  • Includes Foot Assist: Without Foot Assist
  • Cylinder Orientation: Side by Side
  • Axle-Mounted Wheel/Tread Material: Rubber
  • Securing Mechanism: Chain
  • Includes Stair Climber: Without Stair Climber
  • Assembled: Yes
  • Weight: 42 lb
  • Non-Marking Axle-Mounted Wheels: No
  • Axle Dia.: 3/4 in
  • Brake Type: No Caster Brake
  • Overall Height - Cylinder Lowered: 44 in
  • Overall HxWxD: 44 in x 30 in x 12 1/2 in
  • Features: Designed To Carry Large Oxygen and Acetylene Cylinder
  • Frame Type: Rounded Back
  • Caster/Wheel Configuration: (2) Axle-Mounted
  • Axle-Mounted Wheel Bearings: Ball Bearing
  • Securing Mechanism Height: 30 in
  • Nose Plate Width: 21 in
  • Frame Finish: Powder Coated
  • Axle-Mounted Wheel Type: Semipneumatic
  • Axle-Mounted Wheel Dia.: 14 in
  • Overall Height - Cylinder Raised: 62 in
  • Caster/Wheel Mounting Location: 2-Wheel
  • Compatible with Product Type: Welding Cylinders and Torches
  • Nose Plate Profile: Standard
  • Nose Plate Thickness: 3/32 in
  • For Surface Type: Concrete, Grass, Wood
  • Frame Material: Steel
  • Includes Firewall: No
  • Handle Type: Continuous Frame Flow-Back
  • Includes Lift Ring: Without Lift Ring
  • Axle-Mounted Wheel Width: 1 3/4 in
  • Includes Lever Pushoff: Without Lever Pushoff
  • Hub Position: Offset
  • Nose Plate Depth: 12 in
  • For Maximum Container Diameter: 12 1/2 in
  • Nose Plate Type: Solid Straight
  • Deck Height: 1/2 in
  • For Maximum Cylinder Diameter: 12 1/2 in
  • Nose Plate WxD: 12 in x 21 in
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

2, Overall Height 44 in, Overall Width 30 in, Overall Depth 12 1/2 in, Load Capacity 400 lb, Securing Mechanism Chain, Caster/Wheel Configuration (2) Axle-Mounted, Axle-Mounted Wheel Type Semipneumatic, Axle-Mounted Wheel/Tread Material Rubber, Axle-Mounted Wheel Dia. 14 in, Handle Type Continuous Frame Flow-Back, Includes Firewall No, Includes Foot Assist Without Foot Assist, Includes Lever Pushoff Without Lever Pushoff, Includes Lift Ring Without Lift Ring, Frame Type Rounded Back
