Shop SANDPIPER

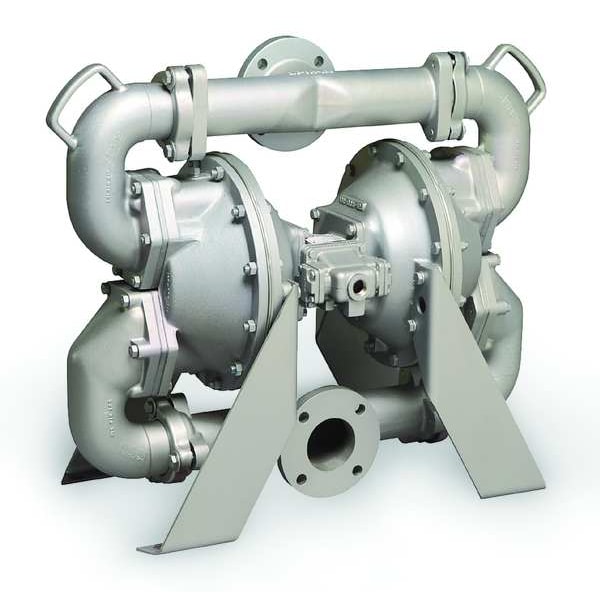

Double Diaphragm Pump, Aluminum, Air Operated, Buna N, 260 GPM

  • Mfr # HDF3,DB7.

  • Zoro # G1522324

product price:  $6,183.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Flap
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HDF3,DB7.
Zoro #
G1522324
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
3/4 in
Manufacturers Warranty Length
5 yr
Overall Length
16.2 in
Overall Width
36.7 in
Overall Height
29.5 in
Media Discharge Connection Size
3 in
Media Intake Connection Size
3 in
Solid Diameter (Maximum)
3 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Flap
Air Intake Connection Type
Flange
Check Seat Material
316 Stainless Steel
Diaphragm Material
Buna-N
Media Temperature (Maximum)
190 Degrees F
Media Temperature (Minimum)
10 Degrees F
Operating Pressure (Maximum)
125 psi
Self-Priming Dry
24 ft
Agency Compliance
ATEX, CE, EAC
Self-Priming Wet
29 ft
Pump Operation Type
Air
Standards
ABS Type Approved, CE Marked, EAC Certified, ISO
Inlet/Outlet
3 in
Media Discharge Connection Type
Flange
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Water
Manifold Connection Type
Flange
Flow Rate @ 100 psi
302 gpm
Flow Rate @ 20 psi
202.2 gpm
For Use With Potable Systems
No
Flow Rate @ 80 psi
300.3 gpm
Media Intake Location
Bottom
Wetted Housing Material
Aluminum
Feet of Head (Maximum)
231 ft
Series Family
HDF3
NPSHr
5 ft of head
Flow Rate @ 60 psi
286 gpm
Priming
Self-Priming
Air Intake Pressure (Maximum)
125 psi
Flow Rate (Maximum)
310 gpm
Media Discharge Location
Top
Flow Rate @ 40 psi
257 gpm
Media Intake Connection Type
Flange
Displacement Per Stroke
1.6 gal
Material Conductivity
Conductive
Media Intake Port Configuration
Center Horizontal
Media Discharge Port Configuration
Center Horizontal
Includes Solenoid
No Solenoid Included
Manifold Connection Standard
Flange
Fluid Chamber Assembly Type
Bolted
Center Section Material
Aluminum
Manifold Port Connection Type
Single Port
Diaphragm Reinforcement
Not Reinforced
Includes Clean In Place Technology
No Clean In Place Included
Series
HDF3
Mounting Hardware Material
Steel
Wetted Body Material
Aluminum
Diaphragm Base Material
Buna-N

Description

Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 3/4 in, Air Intake Connection Type Flange, Check Seat Material 316 Stainless Steel, Diaphragm Material Buna-N, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 310 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3 in, Media Discharge Connection Type Flange, Media Discharge Location Top, Media Intake Connection Size 3 in, Media Intake Connection Type Flange
