  9. Double Diaphragm Pump, Aluminum, Air Operated, Buna N, 70 GPM

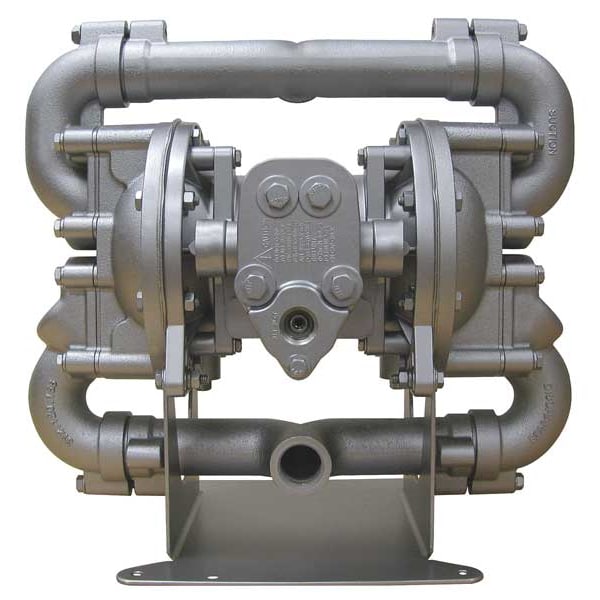

Sandpiper Double Diaphragm Pump, Aluminum, Air Operated, Buna N, 70 GPM HDF1,DB2A. - main

Double Diaphragm Pump, Aluminum, Air Operated, Buna N, 70 GPM

  • Mfr # HDF1,DB2A.

  • Zoro # G1311913

product price: $2,235.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Flap
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HDF1,DB2A.
Zoro #
G1311913
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Manufacturers Warranty Length
5 yr
Overall Height
15.7 in
Overall Width
16-3/4 in
Overall Length
10.8 in
Media Intake Connection Size
1 in
Solid Diameter (Maximum)
1 in
Media Discharge Connection Size
1 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Flap
Air Consumption (Maximum)
50 scfm
Air Intake Connection Type
NPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
Buna-N
Media Temperature (Maximum)
190 Degrees F
Media Temperature (Minimum)
-40 Degrees F
Operating Pressure (Maximum)
125 psi
Self-Priming Wet
24 ft
Self-Priming Dry
17 ft
Pump Operation Type
Air
Agency Compliance
ATEX,ABS, CE, EAC
Inlet/Outlet
1 in
Standards
ABS Type Approved, CE Certified, EAC, ISO
Flow Rate @ 80 psi
68.2 gpm
Manifold Connection Type
NPT
Media Discharge Location
Bottom, Center
Flow Rate (Maximum)
70 gpm
Media Intake Location
Center, Top
Media Discharge Connection Type
NPT
Media Intake Connection Type
NPT
Air Intake Pressure (Maximum)
125 psi
For Use With Potable Systems
No
Flow Rate @ 40 psi
55.6 gpm
Flow Rate @ 60 psi
62.5 gpm
Priming
Self-Priming
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Water
Flow Rate @ 100 psi
71.5 gpm
Flow Rate @ 20 psi
39.4 gpm
Wetted Housing Material
Aluminum
Series Family
HDF1
Feet of Head (Maximum)
289 ft

Description

Double Diaphragm Pump, Air Consumption (Maximum) 50 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Buna-N, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 70 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPT, Media Discharge Location Bottom, Center, Media Intake Connection Size 1 in, Media Intake Connection Type NPT
