Shop SANDPIPER

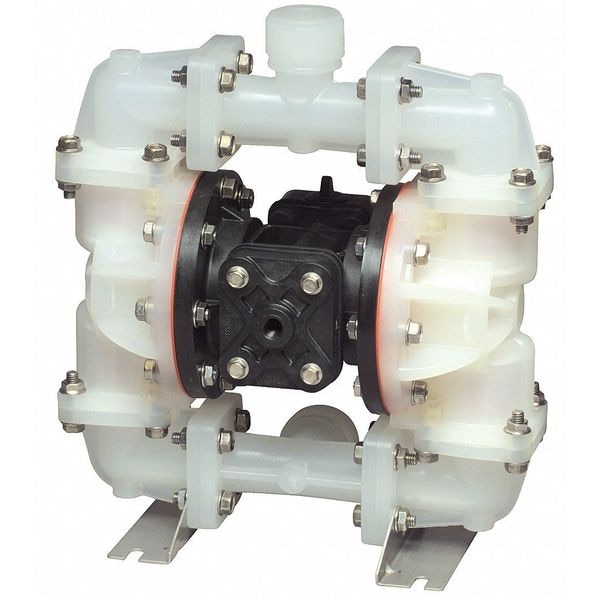

Double Diaphragm Pump, PVDF, Air Operated, PTFE, 23 gpm GPM 220 Degrees F

  • Mfr # S07B1K2KPNS000.

  • Zoro # G5373006

product price:  $2,803.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
PVDF
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S07B1K2KPNS000.
Zoro #
G5373006
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Overall Width
11.8 in
Overall Height
13.3 in
Overall Length
7.1 in
Solid Diameter (Maximum)
0.25 in
Media Intake Connection Size
3/4 in
Media Discharge Connection Size
3/4 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
PVDF
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Intake Connection Type
NPT
Check Seat Material
PVDF
Diaphragm Material
PTFE
Media Temperature (Maximum)
220 Degrees F
Media Temperature (Minimum)
0 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Self-Priming Dry
9 ft
Agency Compliance
CE, EAC
Self-Priming Wet
9 ft
For Use With
Highly Corrosive Fluids, Intermittent/On-Demand, Low Abrasive Fluids, and Suspended Solids
Standards
ABS Type Approved, CE Marked, EAC Certified, ISO
Inlet/Outlet
3/4 in
Air Intake Pressure (Maximum)
100 psi
Media Intake Location
Bottom
Media Intake Connection Type
NPT
Priming
Self-Priming
For Use With Potable Systems
No
Flow Rate @ 100 psi
23 gpm
Flow Rate @ 60 psi
19.5 gpm
Wetted Housing Material
PVDF
Media Discharge Location
Top
Series Family
S07
Flow Rate @ 80 psi
21.6 gpm
Manifold Connection Type
NPT
Feet of Head (Maximum)
231 ft
Chemical Compatibility
Flow Rate @ 20 psi
11.5 gpm
Flow Rate @ 40 psi
16.3 gpm
Flow Rate (Maximum)
23 gpm
Media Discharge Connection Type
NPT
Includes Clean In Place Technology
No Clean In Place Included
Manifold Port Connection Type
Single Port
Wetted Body Material
PVDF
Includes Solenoid
No Solenoid Included
Displacement Per Stroke
0.026 gal
Mounting Hardware Material
Stainless Steel
Fluid Chamber Assembly Type
Bolted
Manifold Connection Standard
NPT
Media Intake Port Configuration
Center Horizontal
Media Discharge Port Configuration
Center Vertical
Diaphragm Base Material
PTFE
Diaphragm Backing Material
Santoprene
Series
S07
Center Section Material
Polypropylene
Diaphragm Reinforcement
Not Reinforced
Material Conductivity
Non-Conductive

Description

Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material PVDF, Diaphragm Material PTFE, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 23 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3/4 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 3/4 in, Media Intake Connection Type NPT, Media Intake Location Bottom
