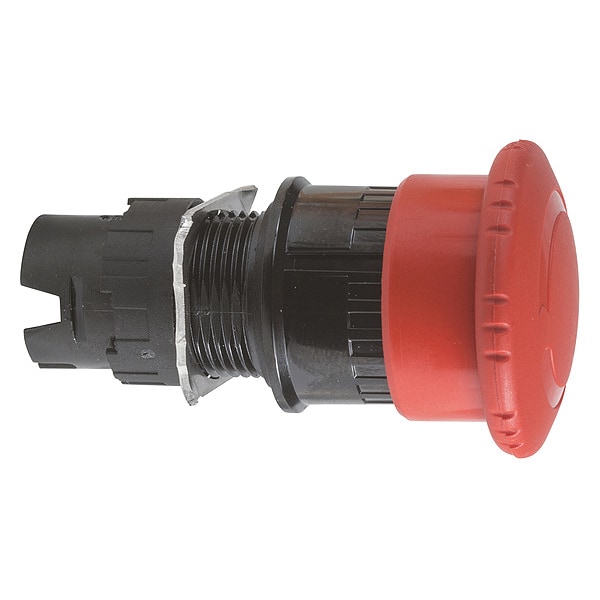

Schneider Electric 16Mm Push Button 65168026 ZB6AS834 - main

16Mm Push Button 65168026

  • Mfr # ZB6AS834

  • Zoro # G0562381

product price:  $54.69
/ea

Key Features

Push Button Style
Mushroom Head
Action
Maintained / Momentary
Maintained Action Release
Twist
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
16 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB6AS834
Zoro #
G0562381
UPC #
785901393986
Country of Origin
France

Dimensions

Panel Cutout Diameter
16 mm
Mushroom Head Diameter
30 mm
Cad Overall Depth
50 mm
Cad Overall Width
30 mm
Cad Overall Height
30 mm
Mounting Diameter
16 mm

Details

Item
Emergency Stop Push Button Head
Push Button Style
Mushroom Head
Action
Maintained / Momentary
Maintained Action Release
Twist
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
JIS C 852, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/ISO 13850, EN/IEC 60947-5-5, EN/IEC 60204-1, JIS C8201-5-1, UL 508, JIS C8201-1
Bezel Material
plastic
Product Type
Push Button Operators
Product Certifications
CCC || CSA || GOST || UL
Mechanical Durability
100000 cycles
Product Or Component Type
head for emergency stop push-button
Type Of Operator
trigger action and mechanical latching
Ambient Air Temperature For Operation
-25-70°C
Shape Of Signaling Unit Head
round
Ambient Air Temperature For Storage
-40-70°C
Device Short Name
ZB6
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Reset
turn to release
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Operator Profile
red mushroom Ø 30 mm, unmarked
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP65 IEC 60529
Protective Treatment
TC
Electrical Shock Protection Class
class II IEC 61140

Description

Push Button
