Item - Relay

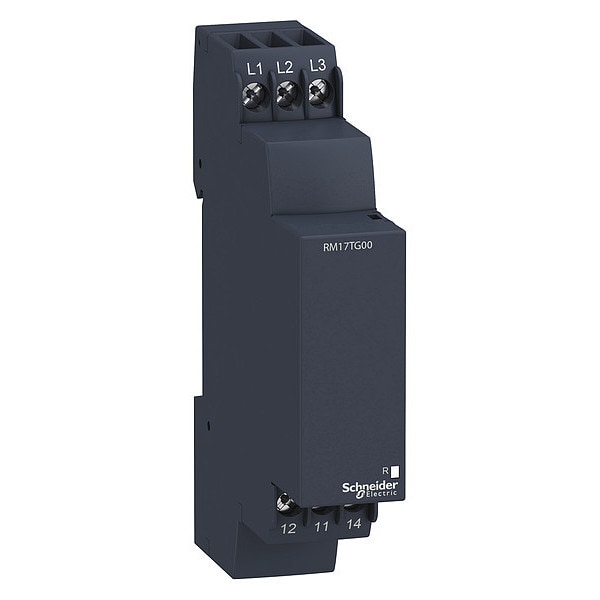

Phase Monitor Relay
AC Contact Rating - Relay
5A @ 250V
DC Contact Rating - Relay
7A @ 30V
Contact Form - Relay
SPDT
Mounting - Relay
DIN Rail
Input or Control Voltage
183 to 528V AC
Phase Loss Sensitivity
No
Base Type - Plug In Relay
Octal
Response Time
<= 130 ms (in the event of a fault)
Standards
C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed
Mechanical Operating Durability
30,000,000
Minimum Switching Current
10 mA
Electrical Operating Durability
100,000
Monitored Parameters
Phase Failure, Phase Sequence
Contact Rating (AC)
5 A @ 250V
Maximum Switching Voltage
250V AC/DC
Maximum Switching Current
5 A
Minimum Operating Temperature
-4 Degrees F
Input Voltage
183 to 528V AC
Contact Rating (DC)
7 A @ 30V
Maximum Operating Temperature
122 Degrees F
Restart Time Delay
1.5 sec
Maximum Switching Capacity
1,250 VA
Power Consumption
1,250 VA
Switching Capacity In Va
1250 VA
[Uc] Control Circuit Voltage
208...480 V
Nominal Output Current
5A
Overvoltage Category
III IEC 60664-1
Voltage Range
183...528 V
[Ui] Rated Insulation Voltage
400 V IEC 60664-1
Power Consumption In Va
0-22 VA 400 V AC 50 Hz
Ambient Air Temperature For Operation
-20-50°C
Mounting Support
35 mm symmetrical DIN rail conforming to EN/IEC 60715
Shock Resistance
15 gn 11 ms IEC 60255-21-1
Product Certifications
C-tick || GL || CSA || UL || GOST
Supply Frequency
50/60 Hz +/- 10 %
Measurement Voltage Limits
183-528 V AC
Ip Degree Of Protection
IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
Vibration Resistance
0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Mechanical Durability
30000000 cycles
Relay Monitored Parameters
phase sequence || phase failure detection (2 or more phase cut)
Relative Humidity
95-95 % 55-55°C IEC 60068-2-30
Contacts Type And Composition
1 C/O
Control Circuit Voltage Limits
12 % + 10 % Un
Operating Rate
<= 360 operations/hour full load
Electrical Durability
100000 cycles
Utilisation Category
AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
Dielectric Test Voltage
2 kV AC 50 Hz, 1 min
Voltage Detection Threshold
< 100 V AC
Insulation Resistance
> 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
Local Signalling
for relay ON LED (yellow)
Control Circuit Frequency
50...60 Hz +/- 10 %
Electromagnetic Compatibility
emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments EN/IEC 61000-6-2
Tightening Torque
0.6-1 N.m IEC 60947-1
Pollution Degree
3 IEC 60664-1
Measurement Range
208...480 V voltage AC
Product Or Component Type
3-phase control relay
Connections - Terminals
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Product Specific Application
for 3-phase supply
Supply Voltage Limits
183-528 V AC
Run-Up Delay At Power-Up
650 ms
Ambient Air Temperature For Storage
-40-70°C
Operating Position
any position without derating
Non-Dissipating Shock Wave
4 kV
