  6. Combo Busbar, 100A, 415V AC, 3 Phase

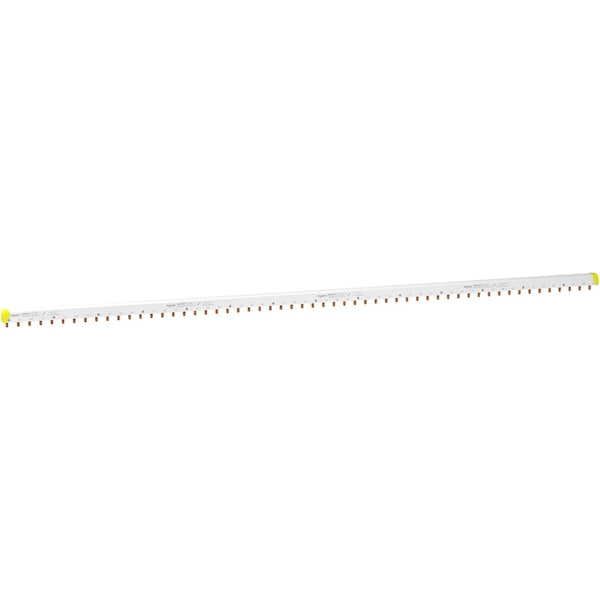

Schneider Electric Combo Busbar, 100A, 415V AC, 3 Phase A9XPH457 - main

Combo Busbar, 100A, 415V AC, 3 Phase

  • Mfr # A9XPH457

  • Zoro # G700905671

product price:  $351.99
/ea
Sold in multiples of 5 for $1,759.95
Free Shipping & Returns

Key Features

Amps
100A
Voltage
415V AC
Number of Poles
4
Phase/Wire
3 Phase
Enclosure Rating
IP20 with end-pieces and tooth covers
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
A9XPH457
Zoro #
G700905671
UPC #
-
Country of Origin
Germany

Dimensions

Width
1000 mm

Details

Item
Combo Busbar
Amps
100A
Voltage
415V AC
Number of Poles
4
Phase/Wire
3 Phase
Enclosure Rating
IP20 with end-pieces and tooth covers
Standards
IEC 60947-7-1 || IEC 61439-2
Color
White RAL 9003)
[Ie] Rated Operational Current
100 A 40DegC
[Ui] Rated Insulation Voltage
500 V AC IEC 61439-2
Marking
N L1 L2 L3
Ip Degree Of Protection
IP20 with end-pieces and tooth covers
Range Compatibility
Acti 9 (Acti9 iC60) || Acti 9 (Acti9 iK60) || Acti 9 (Acti9 iID) || Acti 9 (Acti9 iID K) || Acti 9 (Acti9 iSW) || Acti 9 (Acti9 iSW-NA) || Multi9 (Multi9 C60)
Total Number Of 18 Mm Modules
57
9 Mm Pitches
114
Range
Acti9
Mounting Location
top or bottom tunnel type terminals || top or bottom double terminal
Lines Description
3L + N
[Ue] Rated Operational Voltage
415 V AC
Fire Resistance
960DegC 30 s ) IEC 60695-2-1
Connection Pitch
18 mm
Connector Type
tooth
Mounting Mode
horizontal
Distance Between Way
72 mm
Device Presentation
cuttable
Provided Equipment
set of 10 end piece
Insulation
insulated
Number Of Ways
14 ways N + 3 L
Pollution Degree
3 IEC 60947-7-1

Description

Acti 9 - comb busbar - 3L+N - 18 mm pitc
