  15. Contact Block, 2NC Slow Break, 22mm

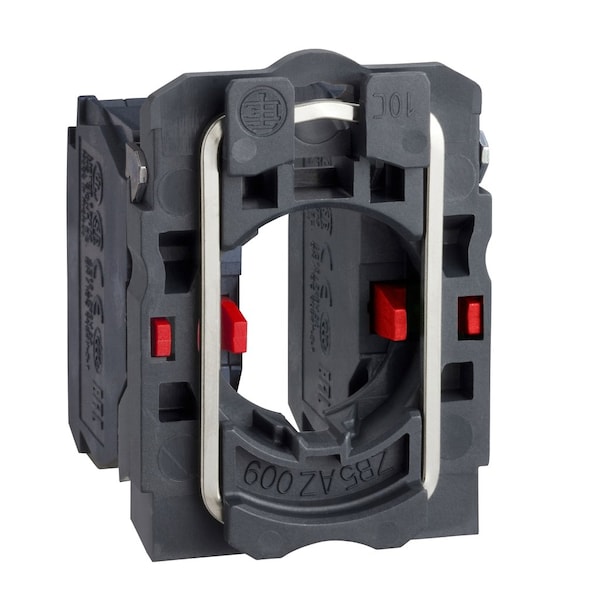

Schneider Electric Contact Block, 2NC Slow Break, 22mm ZB5AZ104 - main

Contact Block, 2NC Slow Break, 22mm

  • Mfr # ZB5AZ104

  • Zoro # G3236475

product price: $31.15
/ea

Key Features

Color
Black
Contact Rating
10A @ 600V AC
Size
22 mm
Terminal Connection
Screw/Clamp
Contact Form
2NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AZ104
Zoro #
G3236475
UPC #
785901370246
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Width
30 mm
Cad Overall Height
42 mm
Cad Overall Depth
32 mm
Connection Size
22 mm
Manufacturer Warranty Length
18 mo

Details

Item
Contact Block
Color
Black
Contact Rating
10A @ 600V AC
Terminal Connection
Screw/Clamp
Contact Form
2NC
Standards
CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Action
Momentary
NEMA Contact Rating Designation
A600/Q600
For Use With
Schneider ZB4 Metal Operators
Application
Operator
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Contact Block Type
single
Positive Opening
with EN/IEC 60947-5-1 appendix K
Product Certifications
LROS (Lloyds register of shipping) || UL || DNV || GL || BV || CSA
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Contact Operation
slow-break
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Contacts Type And Composition
2 NC
Device Composition
body || fixing collar
Head Type
standard
Tightening Torque
0.8-1.2 N.m EN 60947-1
Electrical Reliability
λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Device Short Name
ZB5
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Usage
standard contacts
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Terminals Description Iso N°1
(11-12)NC
Ip Degree Of Protection
IP20 IEC 60529
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Contacts Material
silver alloy (Ag/Ni)
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Operating Travel
1.5 mm NC changing electrical state) || 4.3 mm total travel)
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Ambient Air Temperature For Storage
-40-70°C
Product Or Component Type
complete body/contact assembly
Mechanical Durability
10000000 cycles
Fixing Collar Material
plastic
Protective Treatment
TH
Device Presentation
basic sub-assemblies
Ambient Air Temperature For Operation
-40-70°C
Terminals Description Iso N°1
(11-12)NC
Compatible Operator
Push Button
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Switch Action
Momentary
Includes Mounting Block
Mounting Block Included
Compatible with Series
ZB5
Terminal Connection Type
Screw Clamp Terminals
AC Contact Rating
1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V

Description

Contact Block, Contact Form 2NC, Contact Rating 10A @ 600V AC, For Use With Schneider ZB4 Metal Operators, Action Momentary, 22 mm, Application Operator, NEMA Contact Rating Designation A600/Q600, Color Black, Terminal Connection Screw/Clamp, Standards CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
