Shop SCHNEIDER ELECTRIC

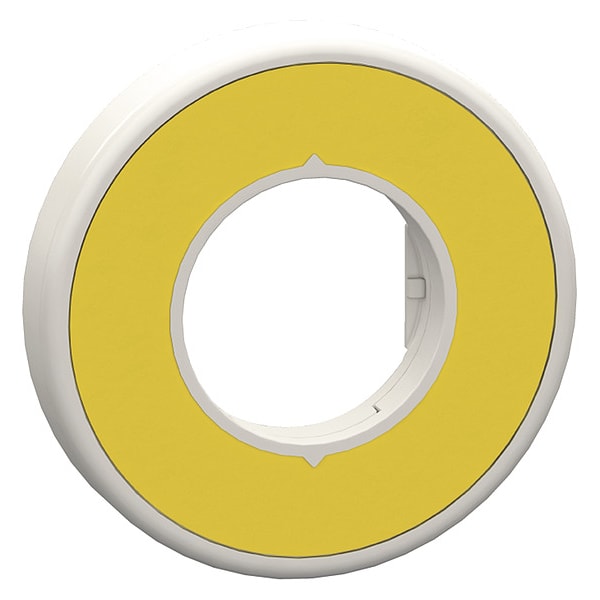

Legend Ring, Yellow/Yellow, Round

  • Mfr # ZBY9W2B101

  • Zoro # G3456863

product price:
$
43.65
/ea

Key Features

Material
Plastic
Height
60 mm
Width
9.3 mm
Diameter
60 mm
Shape
Round
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZBY9W2B101
Zoro #
G3456863
UPC #
-
Country of Origin
Indonesia

Dimensions

Height
60 mm
Width
9.3 mm
Diameter
60 mm
Manufacturer Warranty Length
18 mo
Compatible Panel Cutout Diameter
22 mm
Overall Diameter
2 3/8 in
Label Dimensions
Ø 60 mm

Details

Item
Legend Ring
Material
Plastic
Shape
Round
Standards
CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
Legend/Background Color
No Legend
For Use With
Mushroom Head Pushbuttons
Product Type
Legend Ring
Legend Color
Yellow
Compatible with Series
XB4, XB5
Keyway Type
Tab
Background Color
Yellow
Operator Additional Information
with illuminated ring
Accessory / Separate Part Destination
emergency switching off mushroom head push-button
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
Product Or Component Type
illuminated unmarked legend ring
Signalling Type
steady
Marking
unmarked yellow
[Ui] Rated Insulation Voltage
24 V 3)EN/IEC 60947-1
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Protective Treatment
TH
Surge Withstand
1 kV IEC 61000-4-5
Bulb Base
integral LED
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Cap/Operator Or Lens Colour
red
Product Certifications
UL Listed || CSA
Device Presentation
intermediate ring
Electromagnetic Emission
class B IEC 55011
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Resistance To Fast Transients
2 kV IEC 61000-4-4
Shape Of Signaling Unit Head
round
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Electrical Insulation Class
class II IEC 61140
Light Source
protected LED
Ambient Air Temperature For Storage
-40-70°C
Compatibility Code
XB4 || XB5
Supply Voltage Limits
19.2-30 V DC || 21.6-26.4 V AC
Ik Degree Of Protection
IK05 EN 50102
Light Source Colour
red
Current Consumption
18 mA
Ambient Air Temperature For Operation
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Resistance To Electrostatic Discharge
4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Description

Legend Ring, Round, Legend Not Applicable, For Use With Mushroom Head Pushbuttons, Legend/Background Color No Legend, Material Plastic, Height 60 mm, Width 9.3 mm, Diameter 60 mm
