  12. /
  13. Push Button Contact Blocks
  14. /
  15. Contact block with body fixing collar for 4 direction joystick controller, Harmony XB4

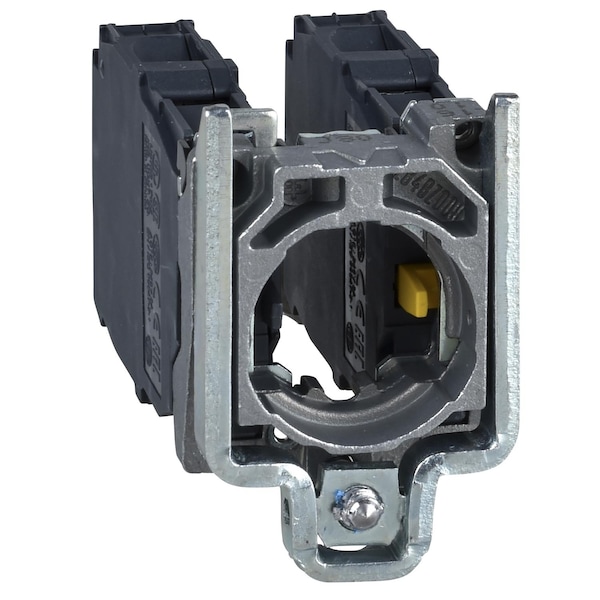

Schneider Electric Contact block with body fixing collar for 4 direction joystick controller, Harmony XB4 ZD4PA203 - main

Contact block with body fixing collar for 4 direction joystick controller, Harmony XB4

  • Mfr # ZD4PA203

  • Zoro # G7807883

product price: $89.79
/ea
Free Shipping & Returns

Key Features

Standards
EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
Ambient Air Temperature For Storage
-40-70°C
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Contacts Usage
standard
Tightening Torque
0.8-1.2 N.m EN 60947-1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZD4PA203
Zoro #
G7807883
UPC #
-
Country of Origin
France

Dimensions

Cad Overall Height
47 mm
Cad Overall Width
30 mm

Details

Item
Contact block with body/fixing collar fo
Standards
EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
Ambient Air Temperature For Storage
-40-70°C
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Contacts Usage
standard
Tightening Torque
0.8-1.2 N.m EN 60947-1
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Positive Opening
without
Fixing Collar Material
zamak
Device Short Name
ZD4
Product Or Component Type
complete body/contact assembly for joystick controller
Contacts Material
silver alloy (Ag/Ni)
Ambient Air Temperature For Operation
-25-70°C
Mechanical Durability
1000000 cycles
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Device Presentation
basic element
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Product Certifications
DNV || LROS (Lloyds register of shipping) || CSA || UL Listed || BV || GL
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Contacts Type And Composition
4 NO
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Contact Operation
slow-break
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Electrical Shock Protection Class
class I IEC 60536
Range of Product
Harmony XB4

Description

Contact block with body/fixing collar fo
