Item

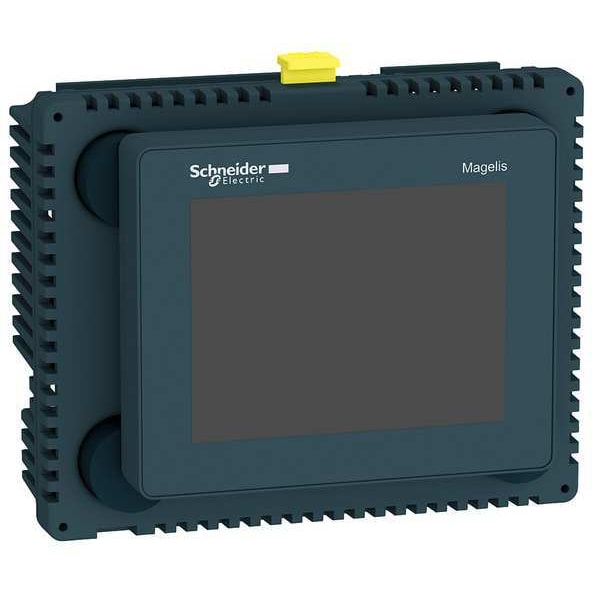

HMI Controller Panel
Display Type
TFT Color LCD
Port Type
USB 2.0, USB-Mini B
Memory
128 KB Internal Data Storage, FRAM
Special Features
Crystal Clear Display, Digital I/Os with HSC/PTO-PWM Functions and Analog I/Os with Temperature Inputs, Numerous Communication Ports
Viewing Angle (Deg.)
40 Degrees top, 60 Degrees Bottom, 60 Degrees Left, 60 Degrees Right
For Use With
Allen-Bradley, FIPWAY, GE, Mitsubishi Melsec, Modbus, Modbus Plus, Modbus TCP, More, Omron Sysmac, Rockwell Automation, Siemens Simatic, Uni-TE
Product Type
HMI Controller Panel
Absolute Accuracy Error
+/- 0.1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || 1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || +/- 5 % of full scale cyclic ratio 10...90% fast output (PWM or PTO mode) || +/- 10 % of full scale cyclic ratio 20...80% fast output (PWM or PTO mode) || +/- 15 % of full scale cyclic ratio 30...70% fast output (PWM or PTO mode)
Local Signalling
no indicator
Maximum Input Frequency
100 kHz fast input (encoder mode) A/B || 100 kHz fast input single phase || 100 kHz fast input pulse/direction
Product Certifications
cULus 508 || cUL 1604 Class 1 Division 2 || KCC || C-tick || cULus CSA 22-2 No 142 || GOST || UKCA || UKEX
Electromagnetic Compatibility
electrostatic discharge immunity test 8 kV air discharge) IEC 61000-4-2 || electrostatic discharge immunity test 6 kV contact discharge) IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz...3 GHz) IEC 61000-4-3 || electrical fast transient/burst immunity test 2 kV power lines) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV between analogue I/O and operating voltage) IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV relay wires) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV Ethernet line) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV COM line) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV CAN line) IEC 61000-4-4 || surge immunity test 2 kV power supply (common mode)) IEC 61000-4-5 || surge immunity test 1 kV power supply (differential mode)) IEC 61000-4-5 || surge immunity test 1 kV common mode digital I/O) IEC 61000-4-5 || surge immunity test 0.5 kV differential mode digital I/O) IEC 61000-4-5 || conducted RF disturbances 10 V 0.15...80 MHz) IEC 61000-4-6 || conducted emission 150 kHz...30 MHz EN 55011 || radiated emission 30 MHz...1 GHz EN 55011
View Angle Horiz X Vert
60° left || 60° right || 40° top || 60° bottom
Number Of Common Point
1 fast input (HSC mode) || 2 digital input
Number Of Pages
limited by internal memory capacity
Immunity To Microbreaks
10 ms
Enclosure Material
PC/PBT
Relative Humidity
5-85 % without condensation
Software Designation
SoMachine
Ip Degree Of Protection
IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
Storage Altitude
0-10000 m
Standards
IEC 61000-6-2 || FCC Class A || UL 508 || EN 61131-2 || CSA C22.2 No 213 Class I Division 2 || ANSI/ISA 12-12-01
Configurable Filtering Time
0 ms no filter none) || 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) || 3...12 ms integrator none/run/stop)
Backlight Lifespan
50000 hours 65000 colours
Character Font
Japanese (ANK, Kanji) || ASCII || Taiwanese (traditional Chinese) || Korean || Chinese (simplified Chinese)
Product Or Component Type
small touch HMI controller
Nema Degree Of Protection
NEMA 4X front panel
Maximum Output Frequency
100 kHz fast output (PTO mode) || 1 kHz fast output (PWM mode)
Operating Altitude
<= 6561.68 ft (2000 m)
Device Presentation
complete product
Discrete Input Voltage
24 V DC sink or source (positive/negative)
Discrete Input Current
7.83 mA fast input || 5 mA digital
Pollution Degree
2 IEC 60664
Overvoltage Protection
with
Discrete Output Voltage
24 V DC 19.2...28.8 V)transistor || 24 V DC 5...30 V)relay || 220 V AC 100...250 V)relay
Discrete Output Number
2 fast output (normal mode) source || 8 digital output source
Integrated Connection Type
1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s) || 1 Ethernet TCP/IP - RJ45 || 1 USB 2.0 type mini B || 1 USB 2.0 type A || CANopen master bus - SUB-D 9
[Us] Rated Supply Voltage
24 V 20.4-28.8 V)DC
Downloadable Protocols
CANopen || Modbus TCP/IP || Modbus
Sensor Power Supply
15-28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA || 15-28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA
Processor Frequency
333 MHz
Input/Output Number
2 fast input FI0...FI1 || 14 digital input DI0...DI13 || 2 fast output FQ0...FQ1 || 8 digital output DQ0...DQ7
Ambient Air Temperature For Storage
-20-60°C
Insulation Resistance
> 10 MOhm between the I/O and internal logic || > 10 MOhm between power supply and earth
Isolation Between Channels And Internal Logic
500 V DC
Fixing Mode
by 1 nut Ø 22 mm 1...6 mm thick panel
Maximum Cable Distance Between Devices
shielded cable <10 m fast input || shielded cable <100 m digital input || unshielded cable <50 m digital input
Maximum Pressure
800...1114 hPa
Ambient Air Temperature For Operation
0-50°C
Input Impedance
2.81 kOhm || 4.7 kOhm
Environmental Characteristic
corrosive gas free
Upgradeability
Upgradeable through digital modules and upgraded components
Vibration Resistance
+/- 3.5 mm 5-9 Hz) IEC 60068-2-6 || 1 gn 9-150 Hz) IEC 60068-2-6
Shock Resistance
147 m/s² 11 ms on DIN rail)IEC 60068-2-27 || 294 m/s² 6 ms on panel mounting)IEC 60068-2-27
Power Consumption In W
15 W
Display Resolution
320 x 240 pixels QVGA
Memory Description
flash NAND, 128 MB || internal data storage FRAM, 128 kB || application run DRAM, 128 MB
Brightness
16 levels via touch panel
Discrete Input Number
2 fast input (normal mode) IEC 61131-2 Type 1 || 14 digital input IEC 61131-2 Type 1
Discrete Output Current
2 A 4 A)5 ms opening contact digital output || 2 A 4 A)2 ms closing contact digital output || 300 mA2 ms fast output (normal mode) || 50 mA2 ms fast output (PWM or PTO mode)
Pixel Resolution
320 x 240 Pixels
Compatible with Series
Fipway, Magelis GTU, Melsec, Simatic, Sysmac
Compatible with Brand
Allen-Bradley, Mitsubishi, Omron, Rockwell Automation, Siemens, Uni-TE
Input Type
(14) Digital, (2) High Speed Counter (HSC)
Memory Type
128 KB FRAM, 128 Mb DRAM, 128 Mb Flash
Output Type
(2) Pulse Train Source Transistor, (8) Digital Output Source
Communication Protocol
CANopen, Modbus, Modbus TCP/IP
Viewing Angle
40 Degrees Top, 60 Degrees Bottom, 60 Degrees Left, 60 Degrees Right
