Shop SCHNEIDER ELECTRIC

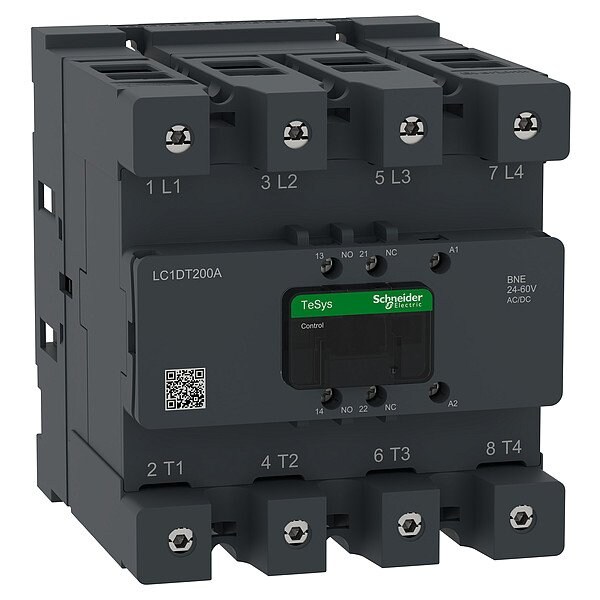

CTR Deca 200A 4P 24-60V ACDC EvLk

  • Mfr # LC1DT200ABNE

  • Zoro # G322841289

product price:
$
1,015.99
/ea
Free Shipping & Returns

Key Features

Number of Auxillary Contacts
2
Overall Height
5.98 in
NEMA Enclosure Rating
No Enclosure
Embedded Surge Suppressor
Yes
Frequency
50/60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1DT200ABNE
Zoro #
G322841289
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Height
5.98 in
Overall Width
5.2 in
Overall Depth
6.1 in

Details

Number of Auxillary Contacts
2
NEMA Enclosure Rating
No Enclosure
Embedded Surge Suppressor
Yes
Frequency
50/60 Hz
Maximum Operating Temperature
140 Degrees F
Includes Auxiliary Contacts
Yes
Coil Voltage
24-60V AC/DC
Mechanical Operating Durability
8,000,000
Full Load Current - Inductive
200 A
Reversing Capability
Non-Reversing
Maximum Voltage Rating
440V
Mounting Style
Plate
Electrical Operating Durability
380,000
Minimum Operating Temperature
-40 Degrees F
Number of Normally Open Main Contacts
4
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Full Load Current - Resistive
Not Rated
Number of Poles
4
Auxiliary Contact Form
1NO/1NC
Terminal Connection Type
Screw Terminals
Series
Tesys Deca
Phase
Single
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Contactor Style
IEC
Item
IEC Contactor

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24-60V AC/DC, Number of Poles 4, Full Load Current - Inductive 200 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 5.2 in, Terminal Connection Type Screw Terminals, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Single
